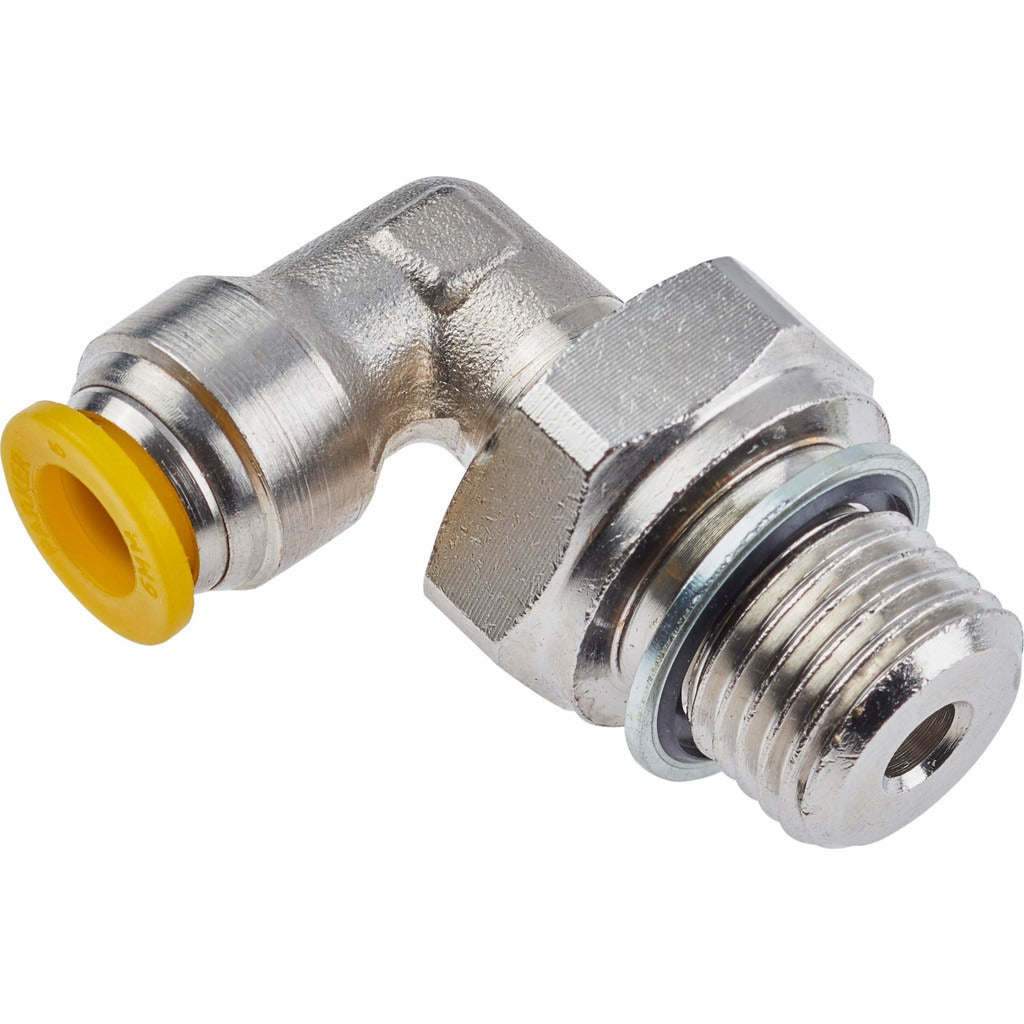

Parker 169PLP-6M-6G 90 Swivel Male Elbow Push-to-connect

Product Description

The PARKER 169PLP-6M-6G is a 90-degree swivel male elbow push-to-connect fitting designed for tube-to-male tube connections in pneumatic and fluid systems. Constructed from nickel-plated brass with a silicone-free grease lubricant, this fitting meets the UL94 V-0 flame resistance standard and is rated for a maximum working pressure of 300 psi. The push-to-connect mechanism allows for fast, tool-free tube insertion, while the swivel design provides flexibility during installation and routing. A silver body with a yellow release button makes the connection and disconnection points easy to identify. Licensed plumbers, HVAC technicians, and pneumatic system installers working with metric tubing will find this fitting suited to tight-space routing applications.

The 169PLP-6M-6G is designed for use with 6 mm outside diameter tubing and a 3/8 inch BSPP male thread connection. It is suited for residential and light commercial pneumatic, fluid control, and compressed air systems where a 90-degree directional change is required at a male port. The rated temperature range of 0 degrees F to 200 degrees F makes it compatible with a broad range of operating environments. The swivel male end simplifies assembly by allowing the fitting body to rotate during thread engagement without stressing the connected tube.

Key Features

• Push-to-connect design allows fast, tool-free tube insertion and release via yellow button
• 90-degree swivel male elbow configuration for routing in confined spaces
• Nickel-plated brass construction with silicone-free grease for compatibility with sensitive systems
• Rated to 300 psi maximum working pressure
• UL94 V-0 flame resistance rating
• Operating temperature range from 0 degrees F to 200 degrees F

Compatibility

Designed for use with 6 mm outside diameter tubing and 3/8 inch BSPP male threaded ports in pneumatic and fluid control systems.

Installation Notes

Depressurize and de-energize the system completely before removing or installing any push-to-connect fittings. Ensure the tube end is cleanly cut, free of burrs, and fully inserted until it bottoms out to achieve a proper seal. Thread engagement should be completed by hand first to avoid cross-threading before final tightening. To disconnect, press the yellow release button fully while pulling the tube straight out.
