Parker 169PLP-4M-M5 90 Swivel Male Elbow M5x0.8 4mm

Product Description

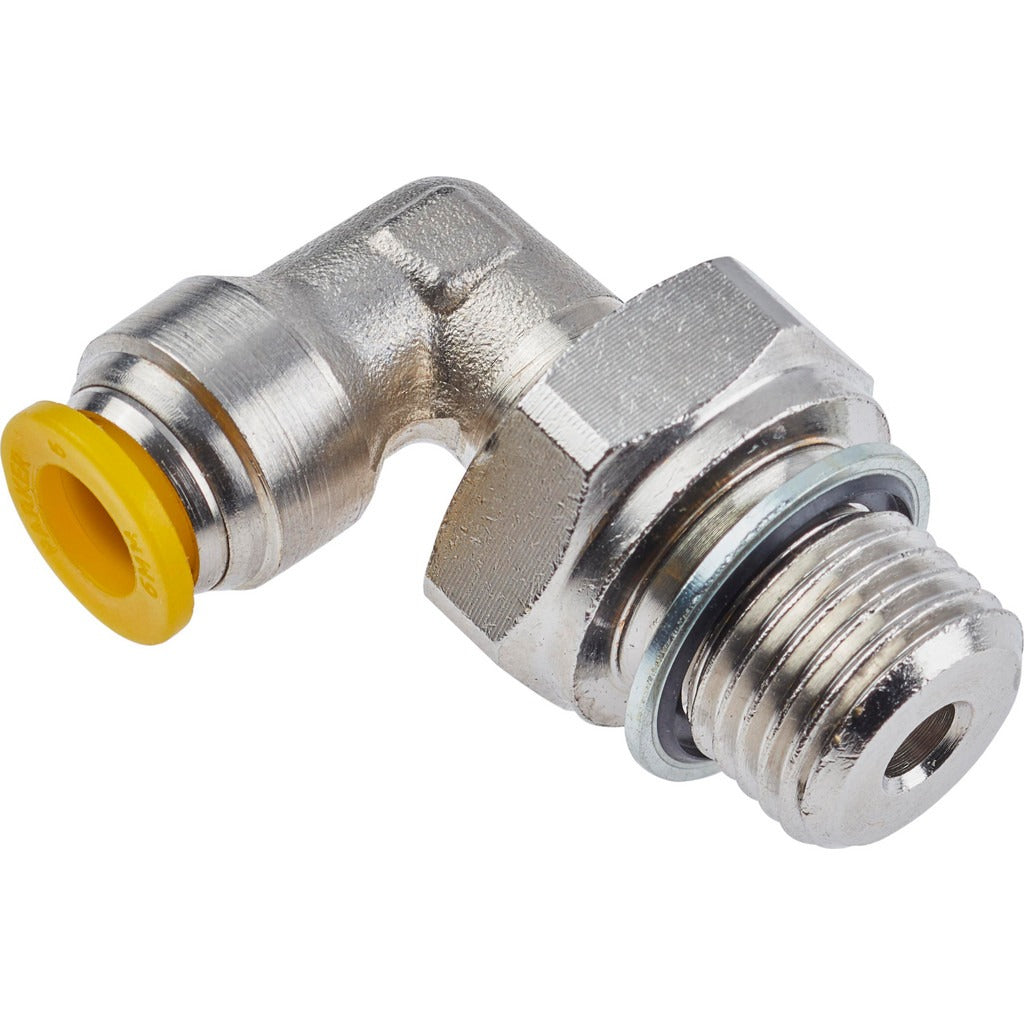

The PARKER 169PLP-4M-M5 is a push-to-connect 90-degree swivel male elbow fitting designed to join a 4 mm OD tube to an M5 x 0.8 male threaded port. Constructed from nickel-plated brass, it delivers a rated working pressure of 300 psi and operates across a temperature range of 0 degrees F to 200 degrees F. The swivel elbow design allows for easy line routing without twisting the connected tubing. A silver body with a yellow release button provides quick tube insertion and single-hand disconnection. This fitting is installed by HVAC technicians, pneumatic systems technicians, and instrumentation professionals working with small-bore tubing applications.

This fitting is suited for light pneumatic and instrumentation circuits where a 4 mm OD tube must transition to an M5 x 0.8 threaded port at a 90-degree angle. Typical applications include control panels, pneumatic actuators, and instrument air lines in both commercial and light industrial settings. Its silicone-free grease lubrication makes it appropriate for environments sensitive to silicone contamination. The UL94 V-0 flame resistance rating makes it suitable for use in or near electrical enclosures where flame-retardant components are required.

Key Features

• Push-to-connect design allows tool-free tube insertion and release via yellow button
• 90-degree swivel elbow simplifies tube routing in tight or angled installations
• Nickel-plated brass construction provides corrosion resistance and durability
• Rated to 300 psi maximum working pressure
• UL94 V-0 flame resistance rating for use in or near electrical enclosures
• Silicone-free grease compatible with silicone-sensitive environments

Compatibility

Designed for use with 4 mm OD tubing connecting to M5 x 0.8 threaded ports. Suitable as a direct replacement or new-installation fitting in pneumatic and instrumentation systems requiring a 90-degree tube-to-male-thread transition.

Installation Notes

Installation is performed by qualified instrumentation or pneumatic technicians. Depressurize and isolate the pneumatic circuit completely before installing or removing any push-to-connect fitting. Ensure the tube end is cut cleanly and squarely with no burrs before insertion to achieve a proper seal. Verify thread engagement on the M5 x 0.8 port before pressurizing the system.
