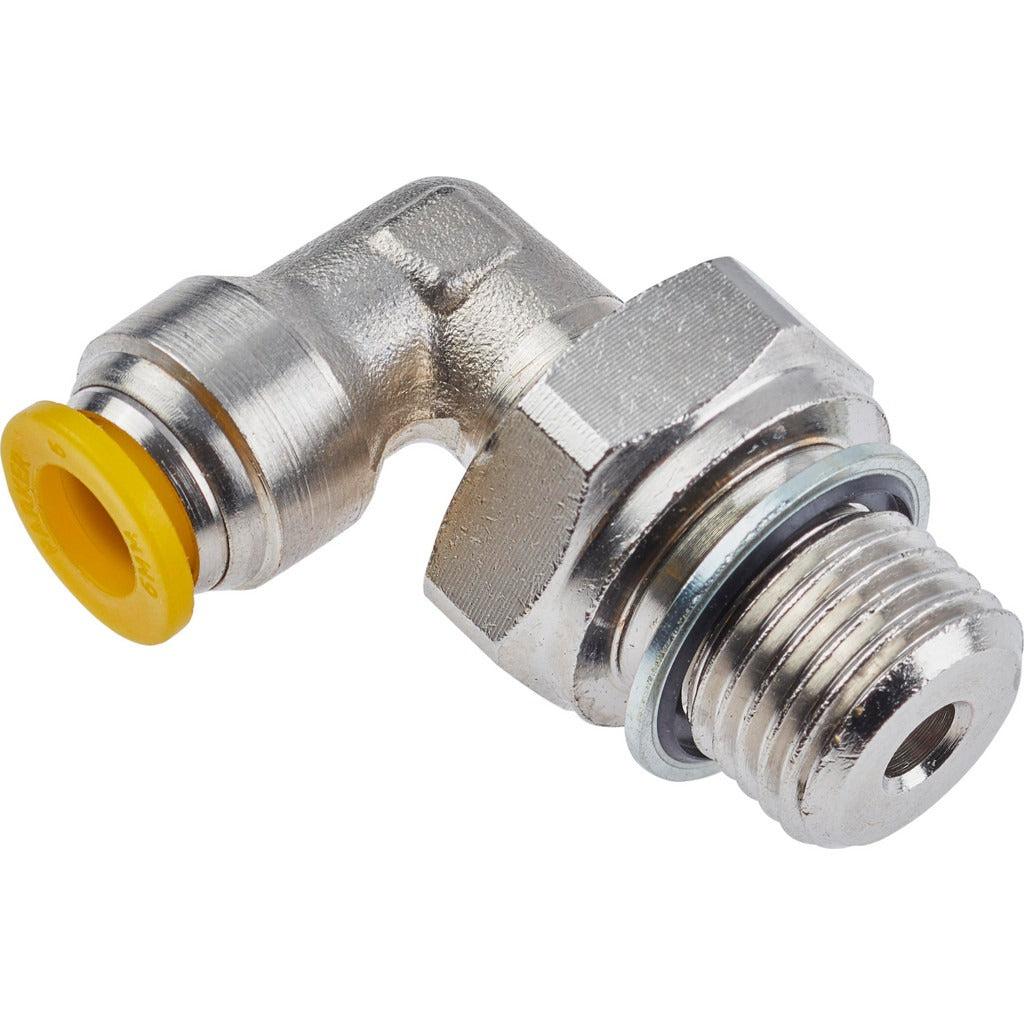

Parker 169PLP-10M-8G 90 Swivel Male Elbow Fitting 10mm

Product Description

The PARKER 169PLP-10M-8G is a push-to-connect 90-degree swivel male elbow fitting designed to join a 10mm outside diameter tube to a male BSPP threaded port. Constructed from nickel-plated brass, it delivers a rated maximum working pressure of 300 psi and handles temperatures from 0 degrees F to 200 degrees F. The push-to-connect mechanism allows for tool-free tube insertion, while the swivel design simplifies alignment during installation. A silver body with a yellow release button distinguishes the fitting visually and makes disconnection straightforward. Silicone-free grease is used internally, making this fitting suitable for applications where silicone contamination must be avoided. Licensed tradespeople and maintenance technicians in HVAC, pneumatic, and fluid-handling applications install this type of fitting.

This fitting is used in pneumatic and fluid-system applications where a 90-degree directional change is required between a 10mm OD tube and a male BSPP threaded port. Its silicone-free construction and UL94 V-0 flame resistance rating make it appropriate for environments with strict material standards. Typical install scenarios include compressed air distribution, process fluid lines, and instrumentation plumbing in both commercial and light industrial settings. The swivel male end eases assembly in tight or awkward panel and manifold installations where tube routing flexibility is needed.

Key Features

• Push-to-connect tube end accepts 10mm OD tubing without additional tools
• 90-degree swivel male elbow allows post-assembly alignment adjustment
• Nickel-plated brass construction for corrosion resistance in pneumatic and fluid service
• Rated to 300 psi maximum working pressure
• UL94 V-0 flame resistance standard compliance
• Silicone-free grease — suitable for silicone-sensitive systems

Compatibility

Designed as an OEM-style push-to-connect fitting for pneumatic and fluid-handling systems requiring a 10mm OD tube connection to a BSPP male threaded port at a 90-degree angle.

Installation Notes

Installation is performed by qualified tradespeople or maintenance technicians familiar with pneumatic or pressurized fluid systems. Depressurize and lock out the system before removing or installing any fittings. Insert the tube fully into the push-to-connect end until it seats; to disconnect, depress the yellow release button and pull the tube free. Verify BSPP thread compatibility on the mating port before assembly, as BSPP threads are not interchangeable with NPT without appropriate adapters.
