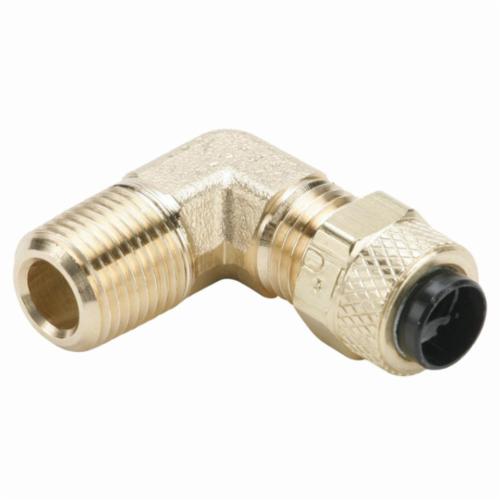

Parker 169P-8-6 Poly-Tite 169P Tube to Pipe Elbow 1/2 x 3/8 in

Product Description

The Parker 169P-8-6 is a Poly-Tite tube to pipe elbow fitting. This fitting is designed for quick installations. The body, nut, and sleeve come pre-assembled to save time. The acetal copolymer sleeve prevents creeping from compression and resists damage from UV rays. As the nut tightens, it rotates around the sleeve to keep the tubing secure and in place. This fitting allows for multiple assemblies and disassemblies without damage.

• Parker 169P series, fitting/connector type: 90-degree elbow
• Nominal size: 1/2 x 3/8 inches, brass construction
• Pressure rating: up to 150 psi, temperature rating: zero to 150 degrees Fahrenheit

Product Highlights

Ideal for professionals looking for reliable tube to pipe connections in HVAC and plumbing applications.

Product Information

Standard Information

• Brand: Parker
• Part Number: 59455

Technical Specifications

• Color: Black
• Dimensions: 1.12 inches wide
• End Style: Compression x Male Pipe
• Fitting/Connector Type: 90-degree elbow
• Length: 1.13 inches
• Material: Brass
• Nominal Size: 1/2 x 3/8 inches
• Pressure Rating: 150 psi
• Temperature Rating: 0 to 150 degrees Fahrenheit
• Series: Poly-Tite 169P
