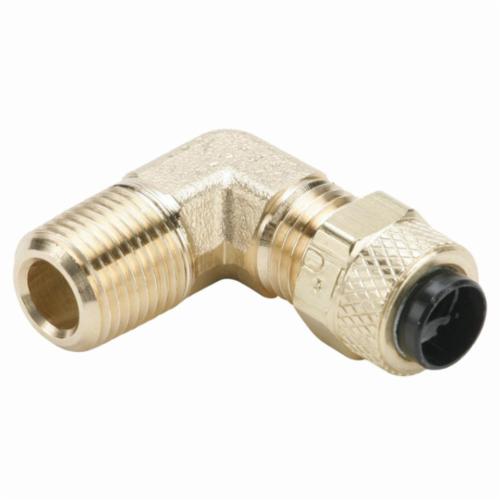

Parker 169P-5-2 Poly-Tite 169P Tube to Pipe Elbow 5/16 x 1/8 in

Product Description

Parker's Poly-Tite 169P Tube to Pipe Elbow with MPN 169P-5-2 provides quick and easy installation. The fitting consists of a body, nut, and sleeve that are pre-assembled for immediate use. This fitting showcases an acetal copolymer sleeve that effectively resists creeping and stress from compression. Additionally, the acetal copolymer material prevents damage from ultraviolet rays and offers high dimensional stability. As the nut tightens, it rotates around the sleeve to avoid twisting and potential damage to plastic tubing. It is designed for repeated assembly and disassembly.

This elbow fitting is ideal for connecting pipes and tubing in various applications.

• Fitting/Connector Type: 90 degree Elbow
• Nominal Size: 5/16 x 1/8 inch
• Material: Brass

Product Highlights

The Parker Poly-Tite elbow fitting is compatible with various tubing types for enhanced flexibility in installations.

Product Information

Standard Information

• Manufacturer: Parker Hannifin
• Part Number: 57133

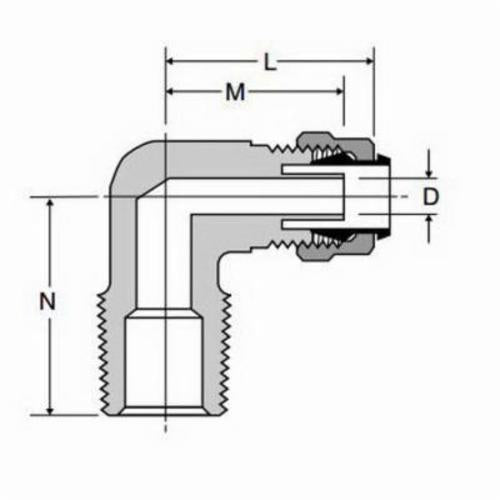

Technical Specifications

• Color: Black
• Dimensions: 0.87 in W
• End Style: Compression x Male Pipe
• Fitting/Connector Type: 90 degree Elbow
• Length: 0.68 in
• Material: Brass
• Nominal Size: 5/16 x 1/8 in
• Pressure Rating: 150 psi
• Temperature Rating: 0 to 150 deg F
• Series: Poly-Tite 169P
