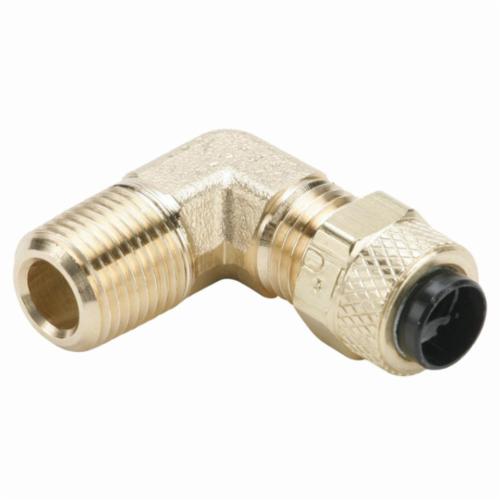

Parker 169P-4-6 Poly-Tite 169P Tube to Pipe Elbow, Compression x Male Pipe, 1/4 x 3/8 in

Product Description

The Parker 169P-4-6 Poly-Tite Tube to Pipe Elbow is a fitting designed to facilitate easy connection between pipes. This product features a sturdy construction ideal for various applications in pneumatic systems.

• Designed for quick installation with pre-assembled components
• Compatible with multiple types of tubing including polyethylene and nylon
• Rated for up to 150 psi pressure and temperature range from zero to 150 degrees Fahrenheit

Product Highlights

The Poly-Tite elbow fitting connects piping systems with reliability and ease, making it a practical choice for both professional and DIY projects.

Product Information

Standard Information

• Brand: Parker
• Manufacturer: Parker Hannifin

Technical Specifications

• Series: Poly-Tite 169P
• Fitting Type: 90 deg Elbow
• Nominal Size: 1/4 x 3/8 in
• Material: Brass

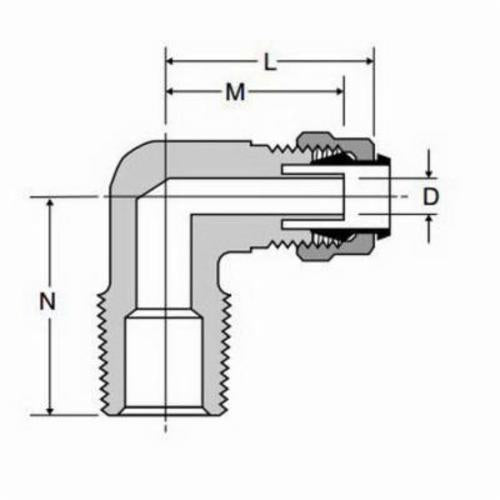

• Length: 1.08 in
• Width: 0.93 in
• End Style: Compression x Male Pipe
• Pressure Rating: 150 psi
• Temperature Rating: 0 to 150 deg F
