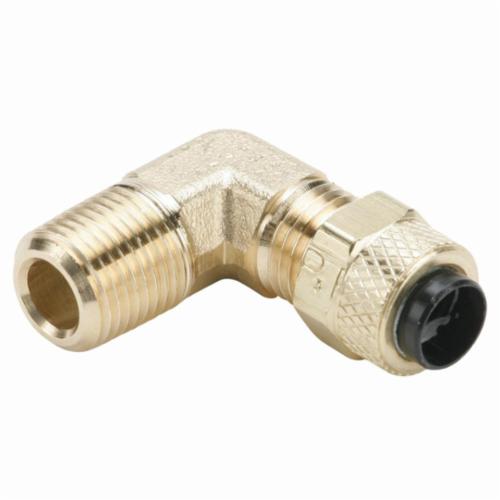

Parker 169P-4-4 Poly-Tite Tube to Pipe Elbow 1/4 in Compression x Male Pipe

Product Description

Parker® 169P-4-4 is a Poly-Tite tube to pipe elbow fitting designed for efficient installation. The assembly includes a body, nut, and sleeve that come pre-assembled. This fitting features an acetal copolymer sleeve, ensuring it maintains its integrity under stress and resist creeping during compression. It is engineered to withstand UV rays and shows excellent dimensional stability over time.

The Poly-Tite connectors allow for easy rotation as the nut tightens, which helps avoid twisting that could weaken the tubing. These fittings can be repeatedly assembled and disassembled without losing functionality.

• Compatible with polyethylene, nylon, polypropylene, and vinyl tubing.
• Made of durable brass material.
• Rated for a maximum pressure of 150 psi.

Product Highlights

This fitting offers a reliable connection for various plumbing and pneumatic applications, ensuring that installations are straightforward and effective.

Product Information

Standard Information

• Manufacturer: Parker Hannifin
• Series: Poly-Tite 169P

Technical Specifications

• Fitting/Connector Type: 90 deg Elbow
• Nominal Size: 1/4 in
• End Style: Compression x Male Pipe
• Pressure Rating: 150 psi
• Temperature Rating: 0 to 150 deg F

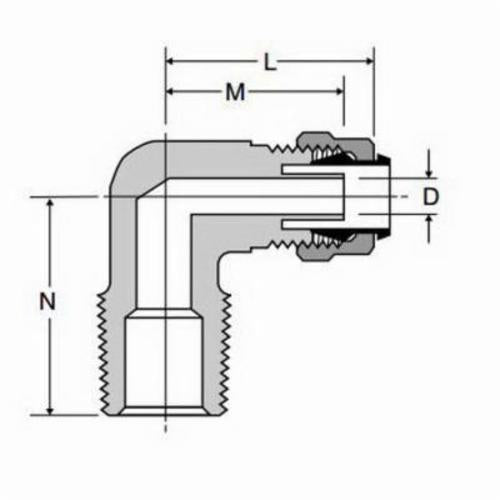

• Dimensions: 0.9 in W
• Length: 0.92 in
• Material: Brass
