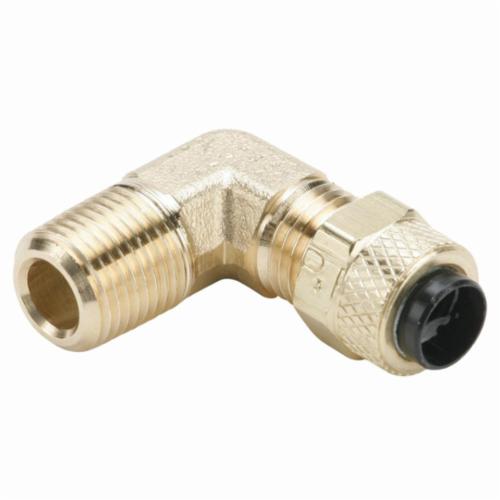

Parker 169P-4-2 Poly-Tite 169P Tube to Pipe Elbow 1/4 x 1/8 in Compression x Male Pipe

Product Description

The Parker Poly-Tite 169P-4-2 is a tube to pipe elbow designed for easy installation. This fitting includes a pre-assembled body, nut, and sleeve, making it ready to use right away. The acetal copolymer sleeve offers resistance to stress and compression, ensuring durability. It also withstands ultraviolet rays and maintains stable dimensions.

With a unique design, the Poly-Tite nuts rotate as they tighten, preventing twisting and maintaining the integrity of the tubing. This fitting is ideal for repeated assembly and disassembly without loss of performance.

• Compatible with polyethylene, nylon, polypropylene, vinyl, and thermoplastic tubing.
• Features a knurled nut for easy hand tightening.
• Meets pressure ratings up to 150 psi.

Product Highlights

This product is suitable for various pneumatic applications, ensuring strong connections in tight spaces.

Product Information

Standard Information

• Brand: Parker
• MPN: 169P-4-2

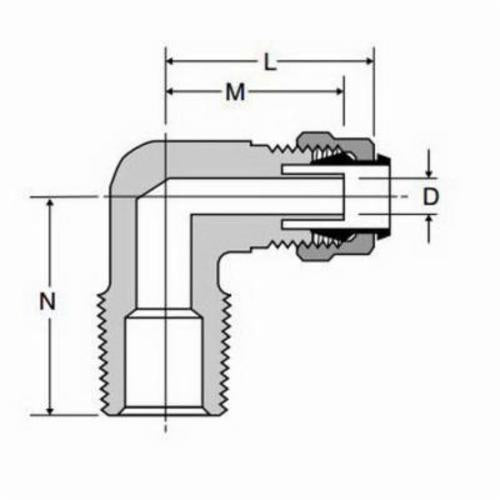

Technical Specifications

• Color: Black
• Dimensions: 0.84 in W
• End Style: Compression x Male Pipe
• Fitting/Connector Type: 90 deg Elbow
• Length: 3/4 in
• Material: Brass
• Nominal Size: 1/4 x 1/8 in
• Pressure Rating: 150 psi
• Series: Poly-Tite 169P
• Temperature Rating: 0 to 150 deg F
