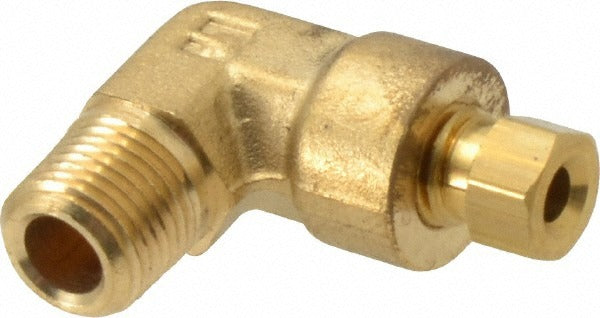

Parker 169HD-2-2 Compression Male Elbow 1/8 Inch Mnpt

Product Description

The PARKER 169HD-2-2 is a brass compression tube male elbow fitting designed for use in fluid and pneumatic line assemblies where a 90-degree directional change is required. One end accepts a compression tube connection while the other terminates in a 1/8 inch male NPT thread. Rated to a maximum working pressure of 4300 psi, this fitting handles demanding service conditions across a wide temperature range of -65 degrees F to 121 degrees C. It is sold individually and is installed by licensed plumbers, HVAC technicians, and fluid systems mechanics.

This fitting is suited for residential and commercial applications involving refrigeration lines, pneumatic control tubing, instrumentation systems, and hydraulic fluid circuits where a compact elbow transition from compression tubing to a male pipe thread is needed. The heavy-duty construction makes it appropriate for high-pressure service environments. It is a practical choice wherever a reliable tube-to-male-pipe 90-degree connection is required in tight installation spaces.

Key Features

• 90-degree male elbow configuration with compression inlet and 1/8 inch MNPT outlet
• Brass construction for corrosion resistance and compatibility with a wide range of media
• Maximum working pressure of 4300 psi for high-pressure service applications
• Wide temperature range from -65 degrees F to 249 degrees F (121 degrees C)
• Compact form factor suited for tight installation spaces
• Sold individually with no minimum order quantity requirement beyond a single unit

Compatibility

Designed as an OEM-style compression-to-male-pipe fitting for use in fluid, pneumatic, and refrigeration line assemblies requiring a 1/8 inch MNPT connection.

Installation Notes

Installation should be performed by a qualified plumber, HVAC technician, or fluid systems mechanic familiar with compression fitting assembly procedures. Depressurize and isolate the system completely before removing or installing any fittings. Compression fittings rely on proper ferrule seating — do not overtighten, as this can deform the ferrule and compromise the seal. Verify thread compatibility and confirm the mating port is standard NPT before assembly.
