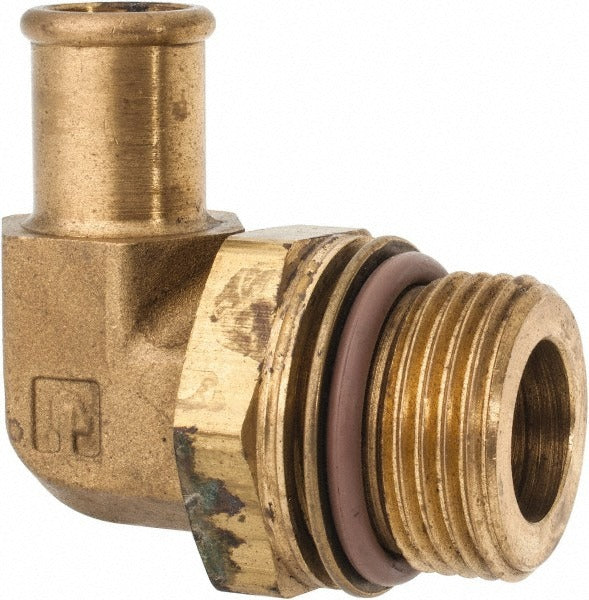

Parker 169HB-10-MI27 Brass Hose Barb Metric Adapter M27x2

Product Description

The PARKER 169HB-10-MI27 is a brass hose barb to metric port adapter designed for fluid and pneumatic system connections requiring a transition from a standard barbed hose fitting to a metric ISO port. The adapter features a 5/8 inch hose barb on one end and an M27x2 metric thread on the other, with a maximum working pressure rating of 150 psi. A Viton seal provides chemical resistance suitable for a range of fluids. Plumbers, hydraulic technicians, and industrial piping professionals install this adapter to bridge imperial hose assemblies to metric-threaded ports on equipment, manifolds, or fluid reservoirs.

This adapter is suited for use in hydraulic, pneumatic, and general fluid transfer systems where a 5/8 inch hose barb connection must mate to an M27x2 metric ISO port. Typical applications include industrial equipment, mobile hydraulic systems, and fluid power circuits that combine metric-ported components with standard barbed hose assemblies. The brass construction makes it appropriate for use with water, oils, and compatible hydraulic fluids at moderate pressures up to 150 psi.

Key Features

• 5/8 inch hose barb end mates to standard flexible hose assemblies
• M27x2 metric ISO port thread for connection to metric-ported components
• 150 psi maximum working pressure rating
• Brass construction offers corrosion resistance and durability in fluid systems
• Viton seal provides chemical compatibility with a broad range of fluids and hydraulic media

Compatibility

Designed as an OEM-style hose barb to metric port adapter for hydraulic and fluid transfer systems using M27x2 metric ISO port threads and 5/8 inch barbed hose connections.

Installation Notes

Installation should be performed by a qualified plumbing or hydraulic technician. Depressurize and drain the system completely before removing or installing any fittings. Apply thread sealant or the appropriate O-ring or seal as required by the system specification. Do not exceed the 150 psi rated working pressure for this adapter.
