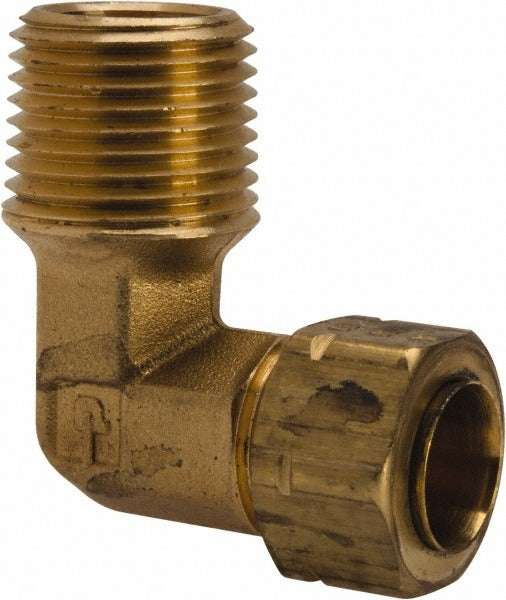

Parker 169CA-8-8 Brass Compression Male Elbow 1/2-14 Nptf

Product Description

The PARKER 169CA-8-8 is a brass compression tube male elbow fitting designed for hydraulic and fluid system plumbing applications. It transitions a compression tube connection to a male NPTF threaded port, providing a reliable 90-degree directional change in a line without welding or flaring. Constructed from brass, this fitting handles working pressures up to 750 psi and operates across a temperature range of -65 degrees F to 250 degrees F. It is sized at 1/2-14 thread per the NPTF standard. Plumbers, pipefitters, and fluid system technicians install this fitting where tube runs must change direction and connect to male NPT ports in equipment or manifolds.

This fitting is suited for residential and light commercial plumbing, pneumatic systems, fuel lines, and hydraulic circuits where brass construction is appropriate and tube-to-pipe transitions are required. The compression end accepts tubing without soldering, making it practical for field repairs and retrofits. It is a common choice wherever a technician needs to route tubing into a male-threaded port at a right angle, including HVAC auxiliary lines, refrigeration drain circuits, and general fluid distribution panels.

Key Features

• Brass construction for corrosion resistance in water, fuel, and air service
• Compression x MNPT end connections for tool-accessible, no-solder installation
• 750 psi maximum working pressure for demanding fluid system applications
• Operating temperature range of -65 degrees F to 250 degrees F
• 1/2-14 NPTF thread standard for reliable pressure-tight sealing
• 90-degree male elbow geometry allows direction changes in tight installations

Compatibility

Designed as an OEM-style compression tube male elbow fitting for plumbing, pneumatic, and fluid distribution systems requiring a 1/2-14 NPTF male port connection with a compression tube inlet.

Installation Notes

This fitting is installed by licensed plumbers, pipefitters, or qualified fluid system technicians. Always depressurize and drain the line before disassembly or installation. Hand-tighten the NPTF threads first, then apply wrench torque per standard trade practice; do not overtighten brass fittings. Apply thread sealant compatible with the system fluid on the NPTF male threads and confirm the compression nut is properly seated on the tubing before pressurizing the system.
