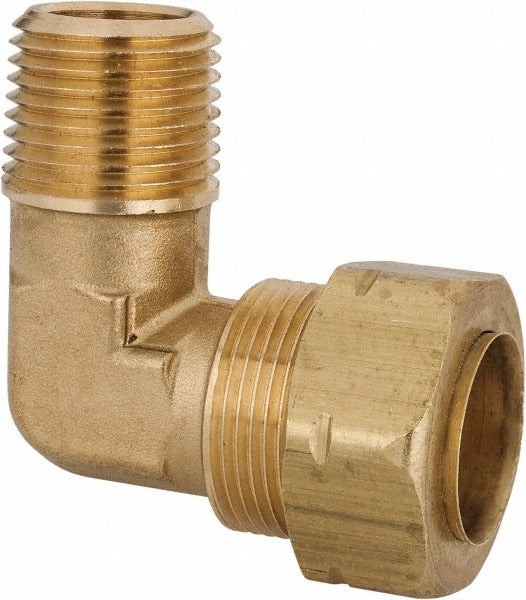

Parker 169CA-12-8 Compression Male Elbow Brass 1/2-14

Product Description

The PARKER 169CA-12-8 is a brass compression tube male elbow fitting designed for use in fluid and pneumatic plumbing systems requiring a directional change between a compression tube connection and a male pipe thread. This fitting carries a 1/2-14 NPTF thread and connects a compression end to a male NPT end, making it a standard choice for instrument, hydraulic, and general-purpose tubing assemblies. Rated to 550 psi maximum working pressure and suitable for temperatures ranging from -65 degrees F to 250 degrees F, it is installed by licensed plumbers, HVAC technicians, and pipefitters working on pressurized systems requiring leak-free tube-to-pipe transitions.

This male elbow is suited for residential and commercial applications where tubing must be routed at a 90-degree angle to a threaded port or manifold. Typical install scenarios include refrigeration lines, compressed air distribution, hydraulic circuits, and instrumentation tubing runs. The compression-by-MNPT configuration allows direct connection to standard NPT-tapped ports without additional adapters. Its brass construction provides corrosion resistance in water, oil, and low-pressure gas service environments.

Key Features

• Brass construction for corrosion resistance across water, oil, and gas service
• Compression x MNPT end connections for direct tube-to-threaded-port installation
• 1/2-14 NPTF thread for pressure-tight sealing without sealant tape on mating threads
• Rated to 550 psi maximum working pressure
• Wide temperature range: -65 degrees F to 250 degrees F
• 90-degree male elbow geometry reduces the need for bent tubing or offset adapters

Compatibility

Designed as an OEM-style replacement or direct-install brass compression male elbow for pressurized tubing systems using 1/2-14 NPTF-threaded ports with compression tube connections.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or qualified HVAC technician. Depressurize and drain the system fully before removing or installing any compression fittings. Hand-tighten the compression nut first, then advance with a wrench per standard compression fitting practice — do not overtighten, as brass fittings can deform the ferrule and compromise the seal. Thread engagement should conform to applicable plumbing and piping codes such as ASME B1.20.3 for NPTF connections.
