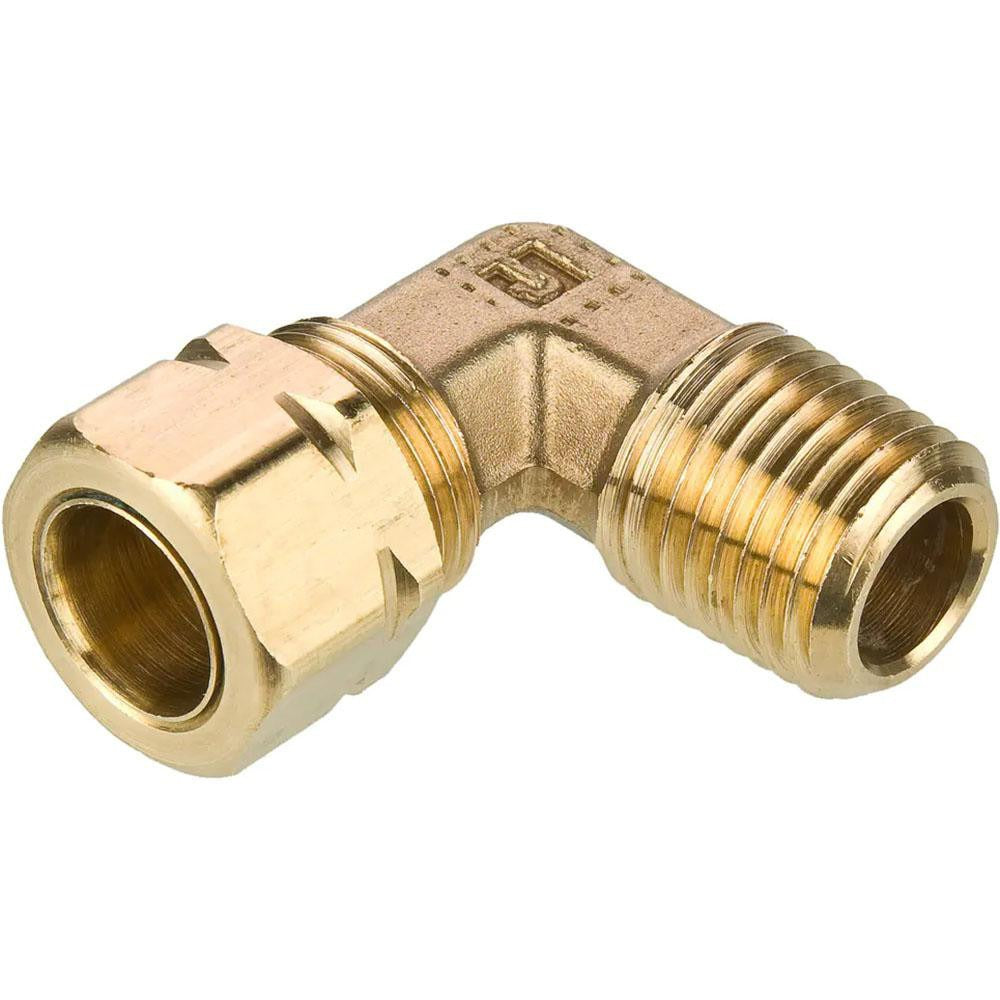

Parker 169CA-10-8 Compression Male Elbow 1/2-14 Brass

Product Description

The PARKER 169CA-10-8 is a brass compression tube male elbow fitting designed to connect compression tubing to a male NPT threaded port at a 90-degree angle. It is used in fluid and pneumatic line assemblies where a direction change is required between a compression tube end and a pipe-threaded port. The fitting is rated to 650 psi maximum working pressure and handles temperatures from -65 degrees F to 250 degrees F, making it well suited for demanding service conditions. Constructed from brass, it delivers corrosion resistance across a wide range of compatible media. Plumbers, HVAC technicians, and industrial pipefitters install this type of fitting during system assembly and repair.

This male elbow is intended for applications requiring a compression-to-MNPT transition in tight or angled routing situations. Common installation environments include refrigeration lines, compressed air systems, hydraulic circuits, and plumbing assemblies where a 1/2-14 NPTF male thread is specified on the port side and a compression connection is required on the tubing side. It is packaged and sold individually and is appropriate for both new construction and field repair work.

Key Features

• Brass construction provides corrosion resistance and reliable sealing across common fluid media
• 650 psi maximum working pressure rating supports demanding pneumatic and hydraulic service
• Wide temperature range from -65 degrees F to 250 degrees F suits varied operating environments
• Compression x MNPT end connections allow tubing-to-pipe-thread transitions without soldering or flaring
• 1/2-14 NPTF thread standard ensures pressure-tight engagement at the male port connection
• 90-degree elbow geometry enables direction changes in space-constrained line routing

Compatibility

Designed as an OEM-style replacement or direct-install compression tube male elbow for systems specifying a 1/2-14 NPTF male thread and a compression tube connection on the opposing end.

Installation Notes

Installation is typically performed by a licensed plumber, HVAC technician, or qualified pipefitter. De-pressurize and isolate the system before removing or installing any compression fitting. Ensure the compression sleeve and nut are correctly seated on the tubing before tightening to avoid leaks. Thread engagement should comply with applicable codes such as the IPC or IFGC depending on the system type; do not overtighten, as brass threads can be damaged by excessive force.
