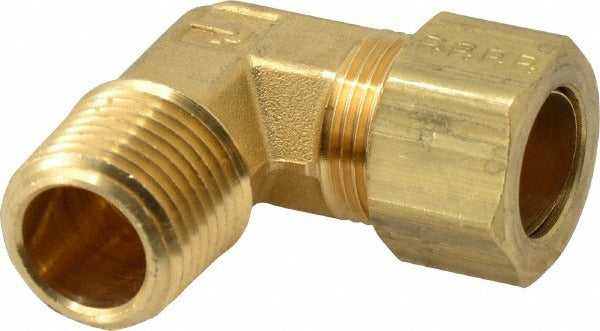

Parker 169C-10-8 Brass Compression Male Elbow 1/2-14 Nptf

Product Description

The PARKER 169C-10-8 is a brass compression tube male elbow designed to connect a compression tube line to a male NPT port at a 90-degree angle. It is rated for a maximum working pressure of 150 psi and handles temperatures from -65 degrees F to 250 degrees F, making it suitable for a wide range of fluid and gas transfer applications in HVAC, plumbing, and industrial systems. The fitting uses a compression end on one side and a 1/2-14 NPTF male threaded connection on the other. Licensed plumbers, HVAC technicians, and pipefitters install this type of fitting as part of tube-to-pipe transition assemblies.

This elbow is appropriate for both residential and light commercial applications where a direction change is needed between a compression tube run and a threaded pipe port. Typical installations include refrigeration lines, compressed air systems, hydraulic circuits, and general fluid handling systems that require a reliable leak-resistant joint at the tube-to-pipe interface. The NPTF thread standard provides a pressure-tight mechanical seal without relying solely on a sealant compound.

Key Features

• 90-degree male elbow configuration for direction changes in tube and pipe assemblies
• Compression x MNPT end connections allow tube-to-threaded-pipe transitions
• 1/2-14 NPTF thread standard for pressure-tight mechanical engagement
• Brass construction offers corrosion resistance and compatibility with common process fluids
• Rated to 150 psi maximum working pressure
• Wide operating temperature range of -65 degrees F to 250 degrees F

Compatibility

Designed as an OEM-style replacement or new-installation fitting for systems using compression tube connections transitioning to 1/2-14 NPTF male threaded ports in HVAC, plumbing, and fluid handling applications.

Installation Notes

Installation should be performed by a licensed plumber, HVAC technician, or qualified pipefitter. Shut off and depressurize the system completely before removing or installing any fittings. Hand-tighten the compression nut first, then tighten to the fitting manufacturer's standard practice for brass compression fittings using an appropriately sized wrench. Apply thread sealant or PTFE tape to the NPTF threads as appropriate for the media and system requirements.
