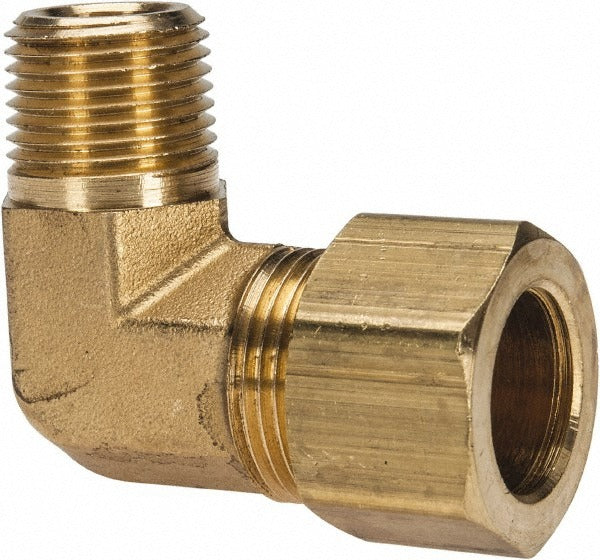

Parker 169C-10-6 Compression Male Elbow Brass 3/8-18

Product Description

The PARKER 169C-10-6 is a brass compression tube male elbow fitting designed to connect compression tubing to a male NPT threaded port at a 90-degree angle. It features a 3/8-18 NPTF thread and transitions from a compression end to a male NPT (MNPT) end, making it a standard choice for fluid and gas line routing where a direction change is required. Constructed from brass, it handles working pressures up to 150 psi and operating temperatures from -65 degrees F to 250 degrees F. Licensed plumbers, pipefitters, and HVAC technicians install this type of fitting in fuel, refrigerant, and fluid distribution systems.

This fitting is suited for residential and light commercial applications where a compression tube connection must terminate at a male NPT threaded port. Typical install scenarios include connecting copper or compatible soft tubing to valves, manifolds, or instrumentation ports. The NPTF thread standard provides a pressure-tight mechanical seal without requiring additional sealant in many applications, though jobsite practices and local codes may vary. It is commonly found in plumbing, HVAC, and industrial fluid handling assemblies.

Key Features

• 90-degree male elbow configuration routes tubing in tight spaces
• Brass construction offers corrosion resistance and durability in fluid and gas service
• 3/8-18 NPTF thread delivers a reliable pressure-tight connection
• Compression x MNPT end connections allow direct tubing-to-pipe transitions
• Rated to 150 psi maximum working pressure
• Wide temperature range of -65 degrees F to 250 degrees F suits diverse service environments

Compatibility

Designed as an OEM-style compression tube male elbow for use in plumbing, HVAC, and fluid handling systems requiring a 3/8-18 NPTF male thread and a compression tube end connection.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or qualified HVAC technician following applicable IPC and IFGC codes. Shut off and depressurize the system completely before removing or installing any fitting. Ensure the compression ferrule is seated correctly and the nut is tightened to the fitting body without over-torquing, which can crack brass components. Inspect threads for damage and verify compatibility with the tubing outside diameter before final assembly.
