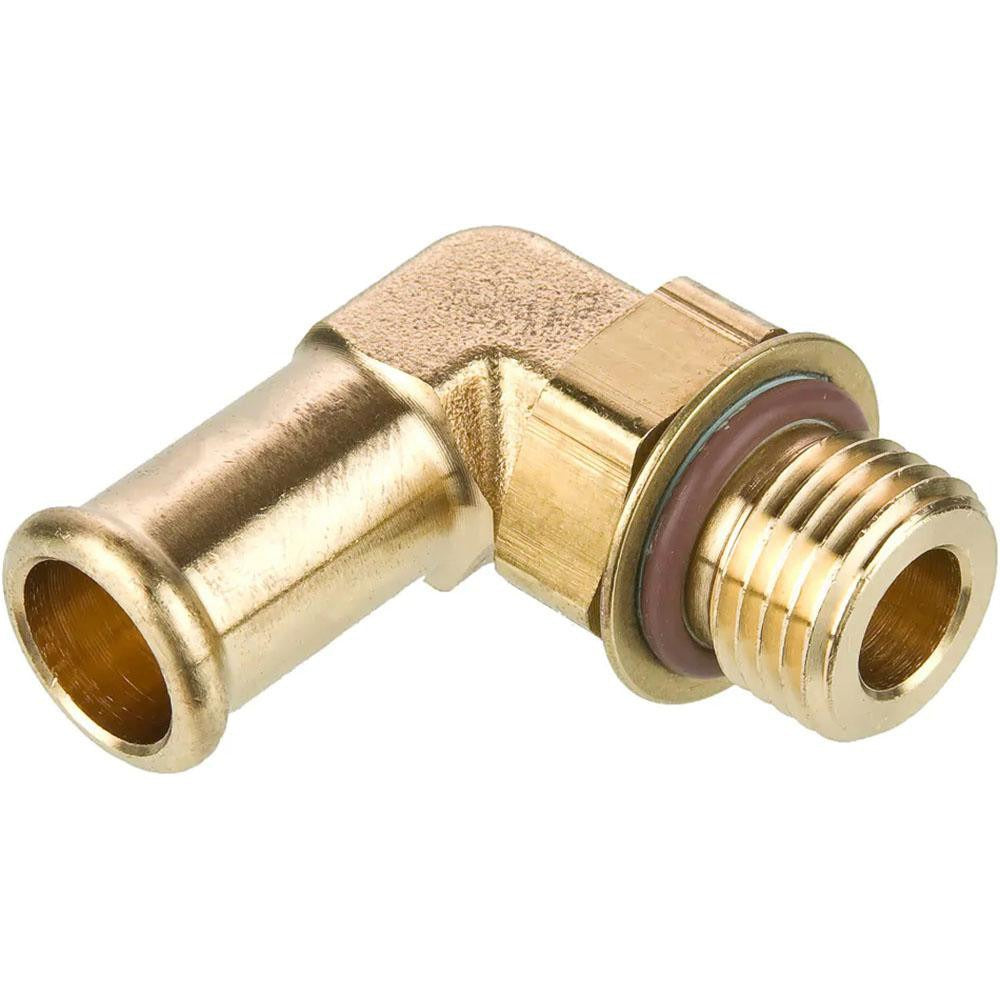

Parker 1695HB-16-12 Brass Elbow Barbed Hose Fitting

Product Description

The PARKER 1695HB-16-12 is a brass elbow barbed hose fitting designed for fluid transfer applications requiring a 90-degree direction change. It connects a 1-inch inside diameter hose to a port with a 1-1/16-12 SAE straight thread. The fitting features a beaded hose barb design that improves grip and helps secure the hose against pullout. Rated for a working temperature range of -40 degrees F to 160 degrees F, it is suited for hydraulic and fluid system service in industrial, mobile equipment, and HVAC-adjacent applications. Licensed plumbers, hydraulic technicians, and mechanical contractors typically install this type of fitting.

This fitting is intended for use in systems where a hose line must transition to a threaded port at a right angle. The hose barb end accepts a 1-inch ID hose, while the threaded end uses a 1-1/16-12 SAE straight thread connection. The straight thread style relies on an O-ring or sealing washer at the port face rather than a tapered thread, making it common in hydraulic manifolds, mobile equipment, and fluid power circuits. The beaded barb retains the hose securely and is typically used with a clamp for pressurized service.

Key Features

• Brass construction for corrosion resistance in fluid transfer applications
• Elbow configuration provides a 90-degree transition to reduce hose stress
• Beaded hose barb design improves hose retention and pullout resistance
• 1-1/16-12 SAE straight thread end for leak-resistant port connections
• Wide operating temperature range: -40 degrees F to 160 degrees F
• 1.25-inch hex head size allows standard wrench installation

Compatibility

Designed to connect 1-inch inside diameter hose to ports with a 1-1/16-12 SAE straight thread. Suitable for hydraulic, fluid power, and fluid transfer systems that use SAE straight thread porting.

Installation Notes

Installation is typically performed by licensed plumbers, hydraulic technicians, or mechanical contractors. Depressurize and drain the system fully before removing or installing any fitting. Use the 1.25-inch hex head with an appropriate open-end or combination wrench; do not use pipe wrenches on hex-body brass fittings. Verify the mating port thread and O-ring or sealing washer condition before assembly, and inspect the hose for damage before seating it onto the barb.
