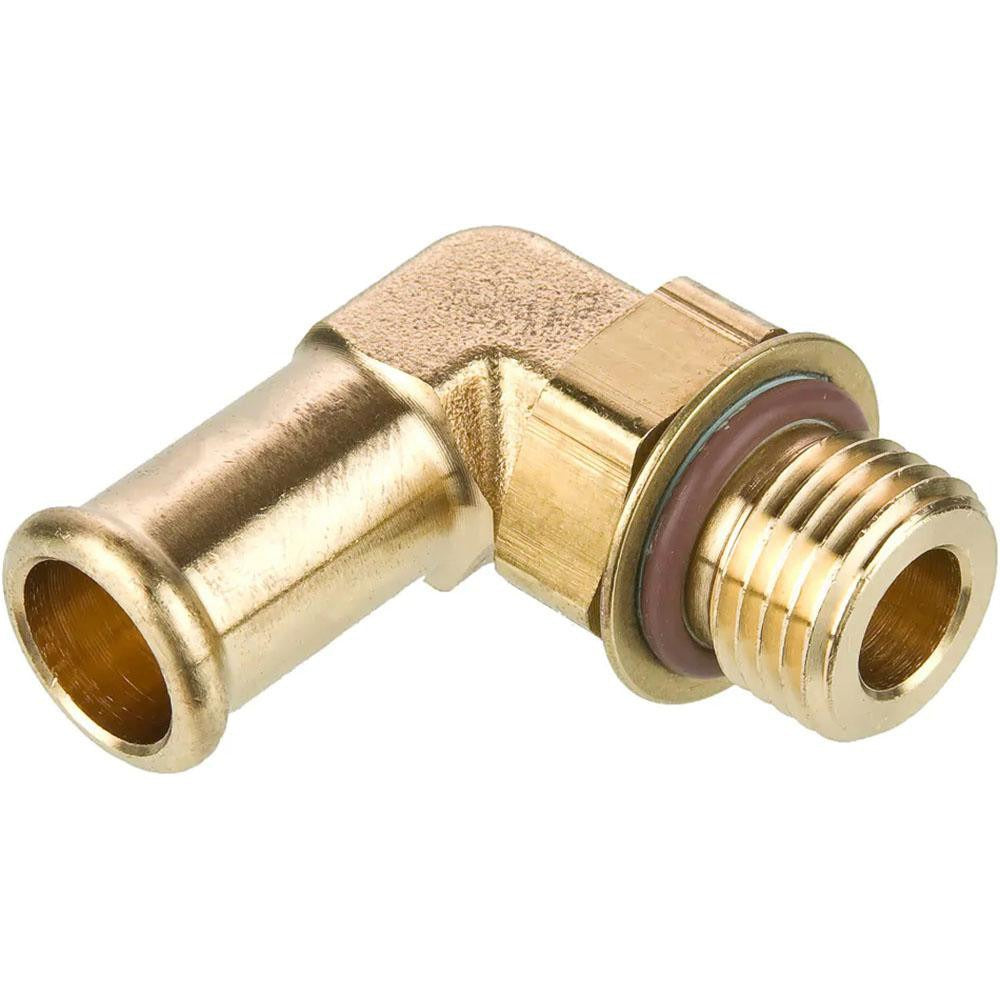

Parker 1695HB-12-8 Barbed Hose Fitting Elbow Brass

Product Description

The PARKER 1695HB-12-8 is a brass elbow barbed hose fitting designed to connect 3/4 inch inside diameter hose to a 3/4-16 SAE straight thread port. The beaded hose barb design provides a secure grip on the hose, reducing the risk of blowoff under pressure or vibration. The elbow configuration allows routing changes in tight spaces, making it well suited for hydraulic, fluid transfer, and equipment plumbing applications. At 0.29 pounds, this compact fitting is handled and installed quickly by plumbers, hydraulic technicians, and mechanical contractors working on industrial or mobile equipment systems.

This fitting is commonly used in fluid power systems, hydraulic lines, and general-purpose hose assemblies where a 90-degree directional change is needed at a threaded port. The SAE straight thread end seats with an O-ring or fitting seal against a compatible boss port, providing a leak-resistant connection. It is appropriate for both light industrial and mobile equipment environments where operating temperatures range from -40 degrees F to 160 degrees F.

Key Features

• Beaded hose barb design improves hose retention and seal integrity
• Elbow configuration allows 90-degree directional routing in confined spaces
• Brass construction offers corrosion resistance in fluid and hydraulic service
• SAE straight thread end for secure, leak-resistant port connection
• Rated for operating temperatures from -40 degrees F to 160 degrees F
• Hex head size of 0.875 inches accommodates standard open-end or combination wrenches

Compatibility

Designed for use with 3/4 inch inside diameter hose and equipment ports with a 3/4-16 SAE straight thread configuration. Verify O-ring or seat condition at the mating port before installation.

Installation Notes

Installation should be performed by a qualified hydraulic or mechanical technician familiar with fluid power fittings and SAE port standards. De-pressurize and drain the system fully before removing or installing any fittings. Use an appropriately sized wrench on the hex head — do not use pliers or pipe wrenches on the hex flats. Ensure the mating straight thread port and sealing surface are clean and undamaged before torquing the fitting.
