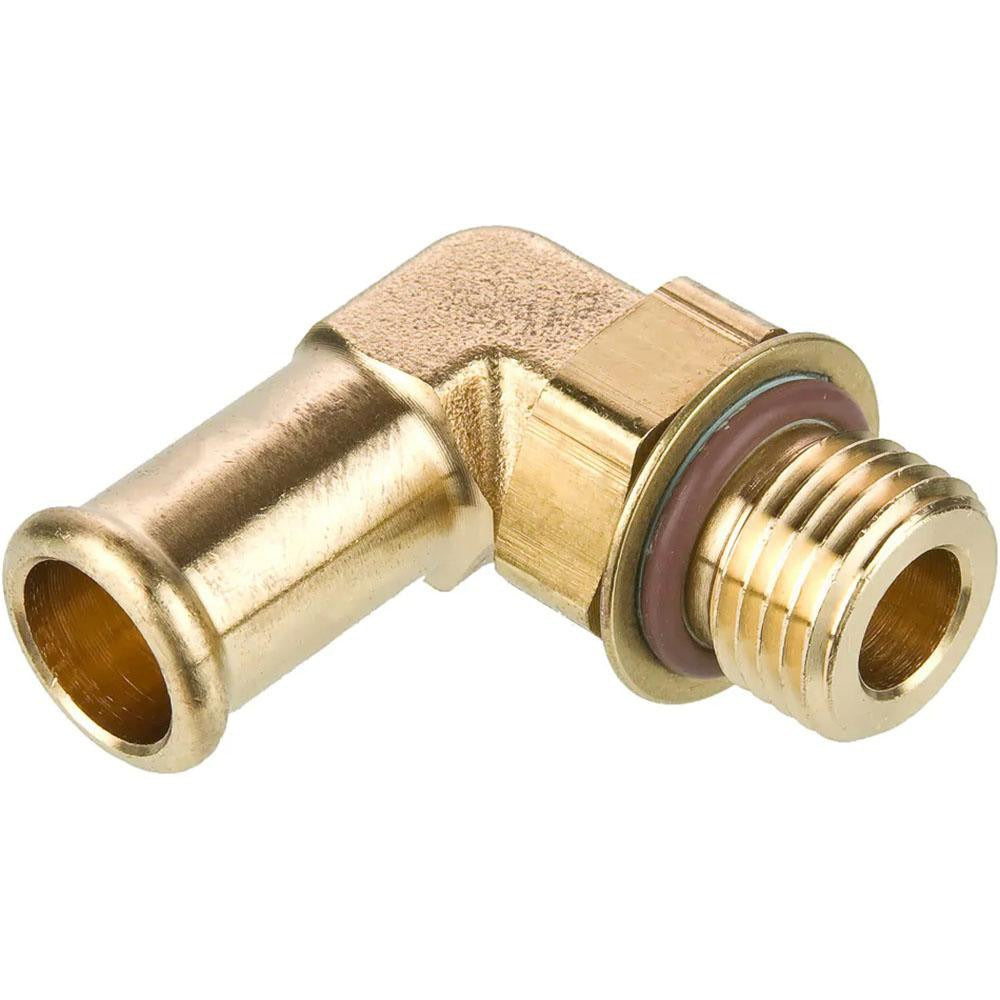

Parker 1695HB-12-12 Brass Elbow Barbed Hose Fitting

Product Description

The PARKER 1695HB-12-12 is a brass elbow barbed hose fitting designed to connect a 3/4-inch ID hose to a 1-1/16-12 SAE straight thread port. The elbow configuration allows for a directional change in the fluid line, reducing stress on the hose and fittings in tight routing applications. A beaded hose barb design provides a more secure grip on the hose, resisting blowoff under pressure. The fitting is rated for service from -40 degrees F up to 160 degrees F, making it suitable for a range of hydraulic, industrial, and fluid transfer applications. Plumbers, hydraulic technicians, and industrial maintenance professionals are the typical installers.

This fitting is used in hydraulic and fluid transfer systems where a hose must transition to a threaded SAE straight port at an angle. The 3/4-inch ID barb connects to standard 3/4-inch ID hose, and the 1-1/16-12 SAE straight thread connects to corresponding port fittings in hydraulic assemblies, industrial equipment, and fluid handling systems. The elbow orientation is particularly useful in installations where straight inline fittings would create excessive hose bend or strain. No specific compatible equipment models were identified in the product data.

Key Features

• Beaded hose barb provides enhanced hose retention and improved resistance to pulloff
• Brass construction offers corrosion resistance in a wide range of fluid media
• Elbow configuration enables directional routing of hose in confined spaces
• SAE straight thread end allows direct port connection without requiring a sealing compound on the threads
• Rated from -40 degrees F to 160 degrees F for broad temperature service range
• Hex head design (1.0 inch hex) allows standard wrench installation

Compatibility

Designed as an OEM-style replacement or new-installation fitting for systems using 3/4-inch ID hose and 1-1/16-12 SAE straight thread ports in hydraulic and industrial fluid transfer applications.

Installation Notes

Installation should be performed by a qualified hydraulic technician or plumber familiar with SAE straight thread fitting assembly. Depressurize and drain the fluid system fully before removing or installing any fittings. Inspect the mating port thread and sealing surface for damage before installation. Ensure the hose is fully seated over the barb and secured with an appropriate clamp to prevent leakage under pressure.
