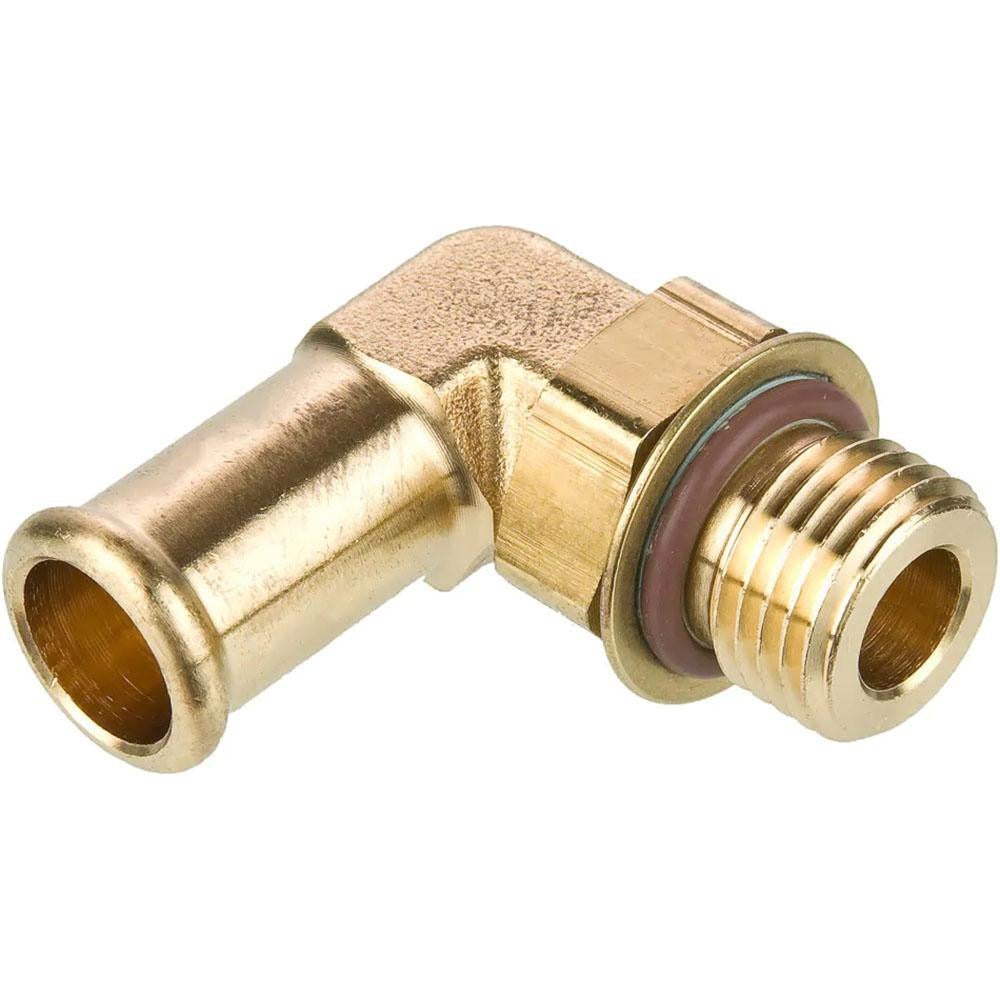

Parker 1695HB-12-10 Brass Elbow Barbed Hose Fitting

Product Description

The PARKER 1695HB-12-10 is a brass elbow barbed hose fitting designed to connect a 3/4 inch inside diameter hose to a 7/8-14 SAE straight thread port. The elbow configuration allows for directional routing of hose assemblies where a straight fitting would create interference or excessive bend radius. The barbed end features a beaded hose barb design that improves retention and sealing when the hose is clamped. Rated for service from -40 degrees F to 160 degrees F, this fitting suits hydraulic, fluid transfer, and general industrial applications. It is commonly installed by HVAC technicians, plumbers, and industrial maintenance mechanics working on fluid handling systems.

This fitting is suited for use in residential and light commercial fluid systems, hydraulic lines, coolant circuits, and similar plumbing assemblies that require a 90-degree change of direction at a hose-to-port connection. The 7/8-14 straight thread end mates to standard SAE straight thread boss ports. The 3/4 inch barb accepts flexible hose with a matching inside diameter. The compact brass construction makes it appropriate for tight installation spaces where corrosion resistance and moderate pressure handling are required.

Key Features

• Beaded hose barb design improves hose retention and reduces pull-off risk under pressure
• Elbow configuration routes hose at 90 degrees for routing flexibility in tight assemblies
• 7/8-14 SAE straight thread end seals against a machined boss port
• Brass construction provides corrosion resistance in water, oil, and coolant service
• Rated from -40 degrees F to 160 degrees F for broad temperature range fitment
• Hex head size of 1 inch allows standard wrench installation without special tooling

Compatibility

Designed as an OEM-style replacement or new-installation barbed hose fitting for systems using 3/4 inch inside diameter hose and 7/8-14 SAE straight thread boss ports in fluid transfer, hydraulic, or coolant line applications.

Installation Notes

Installation should be performed by a qualified mechanic or plumber familiar with hydraulic and fluid system fittings. Depressurize and drain the system fully before removing or installing any hose fitting. Apply appropriate thread sealant or an O-ring to the straight thread end as required by the port specification — do not use pipe tape on straight thread boss ports. Torque the hex head using a 1 inch wrench and secure the hose with an appropriate clamp rated for the application pressure and temperature.
