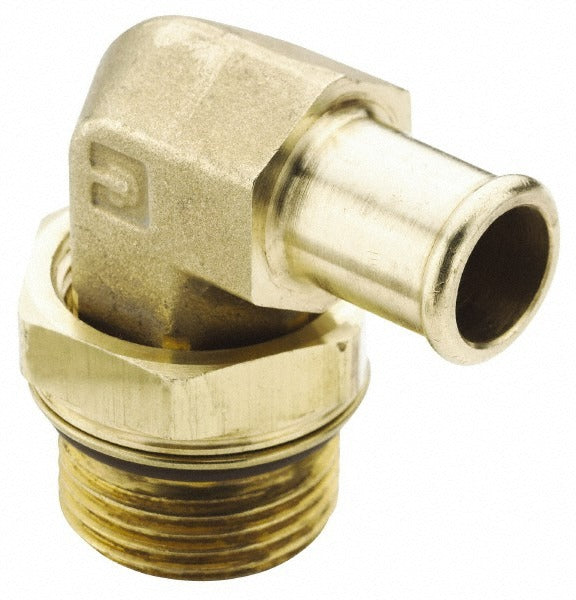

Parker 1695HB-10-10 Brass Elbow Hose Barb Fitting

Product Description

The PARKER 1695HB-10-10 is a brass elbow barbed hose fitting designed to connect a 5/8-inch ID hose to a 7/8-14 SAE straight-thread port. The elbow configuration redirects fluid flow at a 90-degree angle, reducing stress on hose runs in tight routing situations. Built from brass for corrosion resistance, it features a beaded hose barb that improves grip and helps prevent hose blowoff under pressure. Rated for service from -40 degrees F to 160 degrees F, this fitting suits hydraulic, fuel, coolant, and general fluid-transfer lines. Licensed plumbers, HVAC technicians, and fluid-system mechanics install this type of fitting in both residential and light commercial applications.

This fitting is used wherever a 5/8-inch ID hose must terminate at a threaded SAE straight-thread port in an angled configuration. Typical applications include HVAC equipment connections, refrigeration system ancillaries, fuel lines, and general hydraulic plumbing where routing constraints prevent a straight fitting from being used. The SAE straight-thread end seats against an O-ring or machined port face for a leak-resistant mechanical connection, while the beaded barb end accepts a clamped hose. It is sold individually and ships as a single piece.

Key Features

• Beaded hose barb on the 5/8-inch ID end improves hose retention and reduces the risk of blowoff
• 7/8-14 SAE straight-thread end provides a reliable, leak-resistant port connection
• Brass construction resists corrosion in fuel, coolant, and water-based fluid systems
• Elbow geometry eases hose routing in space-constrained installations
• Rated for operating temperatures from -40 degrees F to 160 degrees F
• Compact profile: 1 inch length, 0.5 inch width, 0.5 inch height

Compatibility

Designed for use with 5/8-inch inside diameter hose assemblies connected to 7/8-14 SAE straight-thread ports. Suitable for hydraulic, fuel, coolant, and general-purpose fluid lines operating within the stated temperature range.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid-system plumbing and applicable codes. Before installation, depressurize and drain the system completely to prevent fluid release or injury. Secure the hose to the barb with an appropriate hose clamp sized for 5/8-inch ID hose, and torque the threaded end per the equipment manufacturer's port specifications. Inspect all connections for leaks before returning the system to service.
