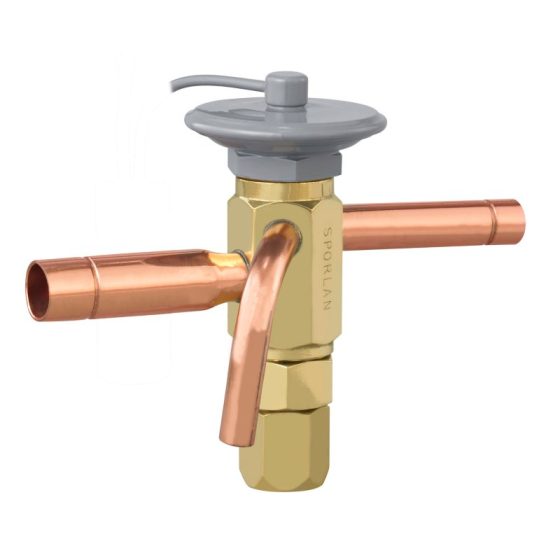

PARKER 169426 Thermostatic Expansion Valve

Product Description

The PARKER 169426 is a thermostatic expansion valve designed for refrigeration applications. It effectively regulates refrigerant flow to the evaporator, ensuring optimal system performance. The valve is built with a brass body, a replaceable thermostatic element, and is externally adjustable to suit various needs. It includes a removable one hundred mesh strainer that allows for easy cleaning or replacement.

• Suitable for R404A, R408A, and R507 refrigerants.
• Equipped with ODF inlet and outlet connections.
• Includes a capillary tube measuring five feet in length.

Product Highlights

This thermostatic expansion valve is essential for managing refrigerant flow, making it crucial for refrigeration systems.

Product Information

Standard Information

• Brand: PARKER
• MPN: 169426

Technical Specifications

• Refrigerant: R404A, R408A, R507
• Application: Refrigeration
• Inlet Connection Size: 3/8 ODF inch
• Outlet Connection Size: 1/2 ODF inch
• Connection Type: ODF inlet x ODF outlet
• Equalizer: 1/4 ODF
• Nominal Tons: 1/2
• Capacity: 0.5 ton
• Capillary Length: 60 inches
• Maximum Working Pressure: 450 psi
• Overall Height: 3.53 inches
• Weight: 1.26 Lbs.
• Shipping Weight: 1.27 Lbs.
• Available Thermostatic Charge: +50°F to -10°F
• Available Thermostatic Charge Code: C
