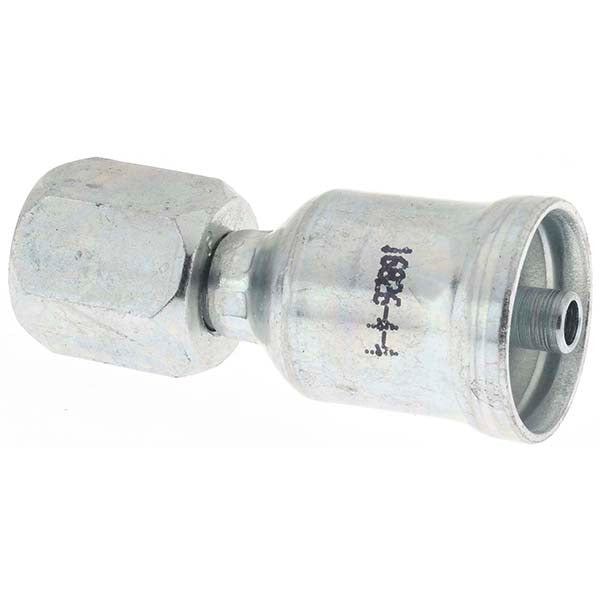

Parker 16826-4-4 Female Jic Hydraulic Hose Fitting 3/16 in

Product Description

The PARKER 16826-4-4 is a female JIC 37-degree, 45-degree dual flare swivel straight hydraulic hose fitting machined from steel. It accepts a 3/16-inch inside diameter hose and connects via a 7/16-20 threaded JIC interface. The swivel design allows the fitting to rotate during assembly, reducing hose twist and making it easier to achieve a proper, leak-free connection in tight plumbing runs. This fitting is part of Parker's Series 26 lineup and is installed by hydraulic system technicians in mobile, industrial, and fluid-power applications where a compact, straight-body JIC termination is required.

This fitting is designed for use with hose inside diameters of 0.1875 inches (3 mm nominal hose size) and is suited for hydraulic plumbing in equipment where 37-degree JIC flare connections are standard. Parker specifies compatibility with hose series 201, 206, 213, 221FR, 244, 266, 285, 293, and SS23CG. Typical installation scenarios include mobile equipment hydraulics, industrial machinery, and fluid-power circuits requiring a straight swivel adapter at the hose end. The package quantity is 2 fittings per order.

Key Features

• Female JIC 37-degree flare seat with 45-degree dual flare swivel straight body
• Swivel design reduces hose twist during assembly and routing
• Steel construction for durability in hydraulic service environments
• 7/16-20 threaded connection for standard JIC plumbing
• Compatible with Parker hose series 201, 206, 213, 221FR, 244, 266, 285, 293, and SS23CG
• Part of Parker Series 26 hydraulic hose fittings

Compatibility

Designed for use with Parker hose series 201, 206, 213, 221FR, 244, 266, 285, 293, and SS23CG with a 3/16-inch inside diameter and a 7/16-20 JIC threaded end connection.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect the JIC flare seat and mating surfaces for nicks or contamination before assembly. Tighten to the fitting manufacturer's recommended procedure using a backup wrench to prevent hose twist; do not use thread sealant on JIC flare connections.
