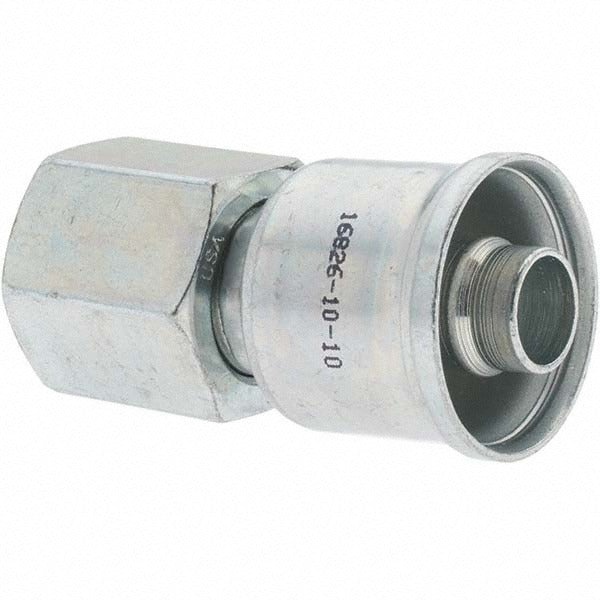

Parker 16826-10-10 Female Jic Swivel Straight Hose Fitting

Product Description

The PARKER 16826-10-10 is a female JIC 37-degree, 45-degree dual flare swivel straight hydraulic hose fitting designed for use in high-pressure fluid power systems. Manufactured from steel with a threaded connection type, this Series 26 fitting accommodates a 0.5-inch (1/2-inch) hose inside diameter and uses a 7/8-14 thread size. The swivel design allows for angular positioning during assembly without twisting the hose, reducing installation stress. Licensed hydraulic technicians and fluid power mechanics install this type of fitting in mobile equipment, industrial machinery, and hydraulic power unit plumbing.

This fitting is suited for straight-run hose terminations requiring a female JIC interface. It is compatible with a defined range of Parker hose series used in industrial and mobile hydraulic applications. The dual flare seat design ensures a reliable metal-to-metal seal at the JIC 37-degree cone interface, making it appropriate for high-cycle and high-pressure service environments where leak-free performance is critical.

Key Features

• Female JIC 37-degree cone seat with 45-degree dual flare swivel straight configuration
• Steel construction for durability in high-pressure hydraulic service
• Swivel design allows hose positioning without torquing the hose body
• 7/8-14 thread size fits standard JIC female port configurations
• 0.5-inch (size 8) hose inside diameter for common mid-range hydraulic hose
• Series 26 fitting for compatibility with specified Parker hose lines

Compatibility

Designed for use with Parker hose series 201, 206, 213, 221FR, 244, 266, 285, 293, and SS23CG with a 1/2-inch (size 8) inside diameter.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and de-energize the hydraulic system fully before removing or installing any fittings. Inspect the JIC cone seat and swivel threads for damage before assembly, and verify hose series compatibility prior to crimping or field attachment. Follow the equipment manufacturer and applicable fluid power standards for assembly procedures and system pressure testing after installation.
