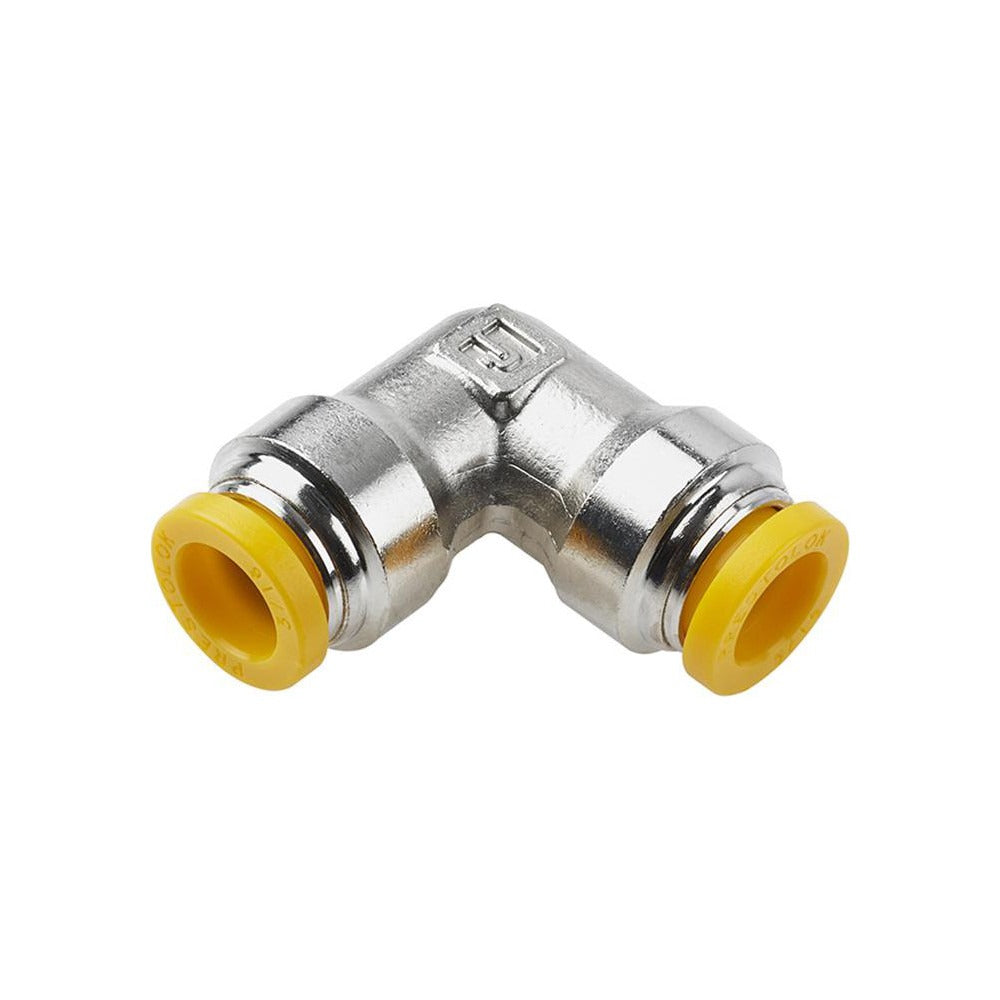

Parker 165PLP-6M Push-to-connect Union Elbow 6mm

Product Description

The PARKER 165PLP-6M is a push-to-connect union elbow fitting designed for tube-to-tube connections in compressed air, pneumatic, and fluid distribution systems. It provides a 90-degree change of direction without the need for threading or soldering. The body is constructed from nickel-plated brass with a silicone-free grease lubricant, making it suitable for use in environments where silicone contamination is a concern. Rated to 300 psi maximum working pressure and compatible with 6mm outside diameter tubing, this fitting is installed and serviced by licensed plumbers, HVAC technicians, and industrial maintenance professionals.

The 165PLP-6M is suited for residential and light commercial pneumatic and fluid lines where a compact 90-degree tube-to-tube union is required. The push-to-connect mechanism allows for fast, tool-free tube insertion and a secure, leak-resistant seal. The yellow release button permits tube removal for repositioning or service without damaging the fitting. Operating temperature range spans 0 degrees F to 200 degrees F, covering most standard HVAC, compressed air, and process fluid applications.

Key Features

• Push-to-connect design allows tool-free tube insertion for fast installation
• 90-degree union elbow routes 6mm OD tubing without threading or soldering
• Nickel-plated brass body resists corrosion in compressed air and fluid service
• Rated to 300 psi maximum working pressure
• Silicone-free grease formulation suits sensitive process environments
• Yellow release button enables non-destructive tube removal and repositioning
• Meets UL94 V-0 flame resistance standard

Compatibility

Designed for use with 6mm outside diameter tubing in push-to-connect pneumatic and fluid distribution systems requiring a 90-degree union elbow configuration.

Installation Notes

Depressurize and isolate the line before removing or installing any push-to-connect fitting. Ensure tube ends are cut cleanly and squarely with no burrs before insertion to achieve a proper seal. Press the tube firmly into the fitting until it seats fully against the internal stop. To release the tube, depress the yellow collar fully and pull the tube straight out.
