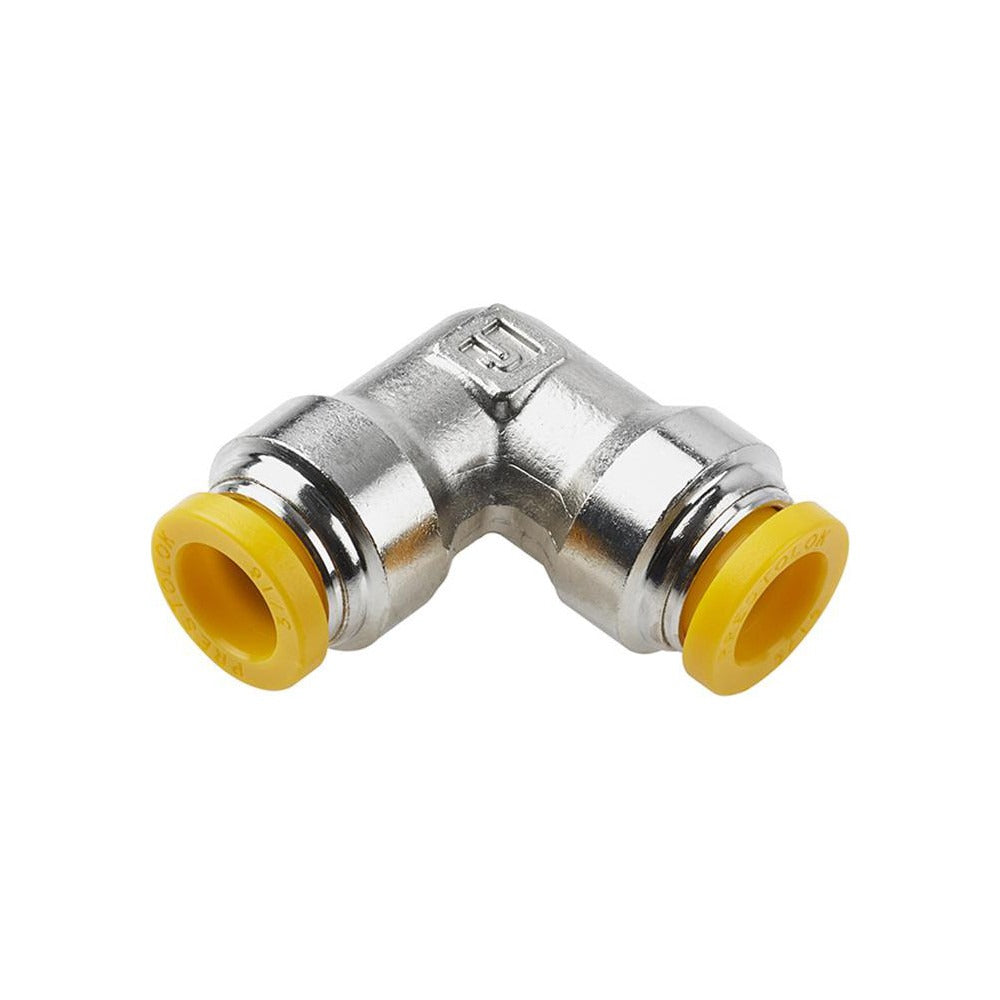

Parker 165PLP-10M Push-to-connect Union Elbow 90 Degree

Product Description

The PARKER 165PLP-10M is a push-to-connect union elbow fitting designed for tube-to-tube connections at a 90-degree angle. It is constructed from nickel-plated brass with a silicone-free grease lubricant and accepts tubing with a 10mm outside diameter. Rated to 300 psi maximum working pressure and suitable for service between 0 degrees F and 200 degrees F, this fitting is well suited for pneumatic and fluid control lines in HVAC, refrigeration, and general industrial plumbing applications. Licensed HVAC technicians and plumbers install this type of fitting where a compact, tool-free right-angle tube connection is required.

This fitting is used in residential and light commercial applications where push-to-connect speed and reliable sealing are priorities. It is appropriate for pneumatic control tubing, compressed air lines, and fluid transfer systems that fall within the rated pressure and temperature envelope. The yellow release button allows for straightforward tube removal during service or system reconfiguration without special tooling.

Key Features

• Push-to-connect design allows tool-free tube insertion and release via yellow button
• Nickel-plated brass construction resists corrosion in damp or humid environments
• 300 psi maximum working pressure for pneumatic and fluid service
• Rated for use from 0 degrees F to 200 degrees F
• Silicone-free grease lubricant — compatible with sensitive instrumentation and painted surfaces
• UL94 V-0 flame resistance standard compliance

Compatibility

Designed for use with 10mm outside diameter tubing in push-to-connect tube-to-tube plumbing and pneumatic systems operating within the rated pressure and temperature limits.

Installation Notes

This fitting is installed by licensed plumbers, HVAC technicians, or pneumatic system technicians. Before installation, depressurize and de-energize the system completely. Ensure the tube end is cut square, deburred, and clean before insertion to achieve a proper seal. To remove tubing, depress the yellow release collar while pulling the tube free — do not force or twist the fitting body.
