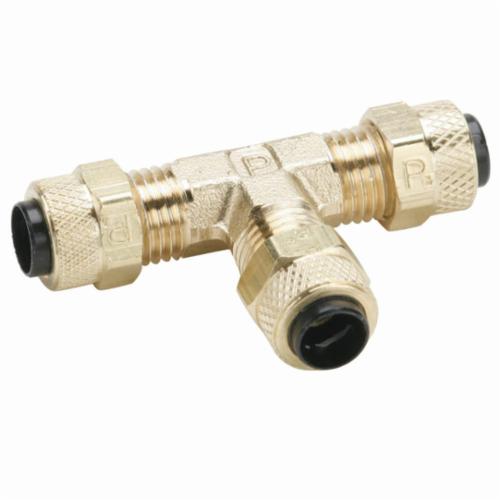

Parker 164P-8 Poly-Tite 164P Compression Union Tee, 1/2 in, Tube, Brass

Product Description

Parker's Poly-Tite fittings are effective for quick installations. The fitting consists of a body, nut, and sleeve that come pre-assembled. The sleeve is made from acetal copolymer, which resists stress and deformation from compression. It can also withstand UV rays and maintains good dimensional stability. As the Poly-Tite nut is tightened, it rotates around the sleeve, reducing the risk of twisting that can weaken the tubing. These fittings allow for repeated assembly and disassembly.

The Parker® Compression Union Tee, with the series designation Poly-Tite 164P, is suitable for tubes with a nominal size of one-half inch. The length of the tee is one point twelve inches. It can handle a pressure of 150 psi and operates effectively within a temperature range of zero to 150 degrees Fahrenheit.

• Pre-assembled and ready for installation
• Acetal copolymer sleeve resists UV rays
• Compatible with multiple tube types including nylon and polypropylene

Product Highlights

This compression fitting is designed to be user-friendly and durable.

Product Information

Standard Information

• Brand: Parker
• Manufacturer: Parker Hannifin

Technical Specifications

• Length: 1.12 inches
• Material: Brass
• End Style: Tube
• Nominal Size: 1/2 inches
• Pressure Rating: 150 psi
• Series: Poly-Tite 164P
• Temperature Rating: 0 to 150 degrees Fahrenheit
• Fitting/Connector Type: Tee
