Parker 164P-6 Poly-Tite 164P Compression Union Tee 3/8 in

Product Description

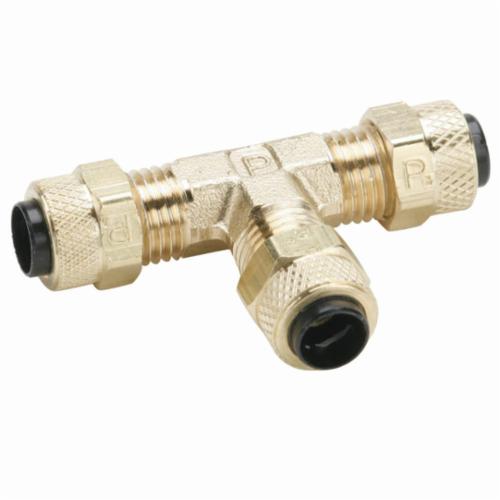

Parker's Poly-Tite Compression Union Tee, model 164P-6, is designed for efficient installation in plumbing systems. This fitting features a pre-assembled body, nut, and sleeve, which simplifies the installation process. The acetal copolymer sleeve is sturdy and resists stress caused by compression. It also withstands UV rays, ensuring durability in various environments.

The unique design allows Poly-Tite nuts to rotate around the sleeve during tightening, minimizing the risk of twisting the plastic tubing. This fitting can be repeatedly assembled and disassembled without loss of integrity.

• Pre-assembled for quick installation.
• UV-resistant acetal copolymer sleeve.
• Allows for repeated assembly and disassembly.

Product Highlights

The Parker 164P-6 fitting is ideal for use with various types of tubing, including polyethylene, nylon, and vinyl. Its robust brass construction provides additional strength and stability.

Product Information

Standard Information

• Manufacturer: Parker Hannifin
• Series: Poly-Tite 164P

Technical Specifications

• Nominal Size: 3/8 in
• Material: Brass
• Length: 0.98 in
• Pressure Rating: 150 psi
• End Style: Tube
• Temperature Rating: 0 to 150 deg F
• Fitting Type: Tee
