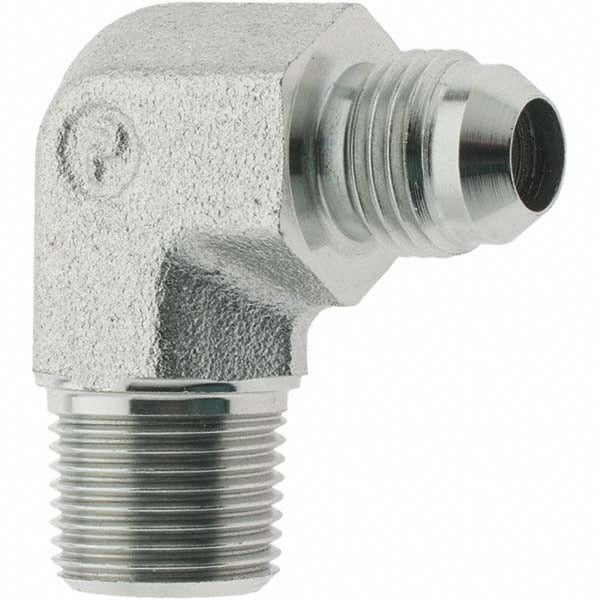

Parker -16419 Steel 90 Elbow 3/8 in Od Flare X Bspt

Product Description

The PARKER -16419 is a steel flared tube 90-degree elbow fitting designed for hydraulic and fluid power line connections. It features a Flare x BSPT end configuration, with a 37-degree flare on one end and a 3/8-19 male BSPT threaded end on the other. The fitting is rated for a maximum working pressure of 4500 psi, making it suited for high-pressure hydraulic circuit work. HVAC technicians, plumbers, and hydraulic system installers use this type of fitting to make directional changes in tubing runs while maintaining a secure, leak-resistant seal. It ships in a package quantity of 5 units.

This elbow is appropriate for industrial, commercial, and mobile hydraulic applications where a 90-degree directional change is needed in a steel tubing line. The BSPT thread end is compatible with British Standard Pipe Taper-threaded ports and components. The fitting is typically found in fluid power systems, hydraulic power units, and similar high-pressure plumbing circuits. Licensed hydraulic technicians and pipefitters commonly install this type of fitting in both fixed and mobile equipment environments.

Key Features

• 37-degree flare angle for secure tube-to-fitting metal-to-metal sealing
• 3/8-19 male BSPT thread for compatibility with BSP-standard ports
• Rated to 4500 psi maximum working pressure (dynamic)
• Steel construction for durability in high-pressure service
• 90-degree elbow geometry for compact directional routing
• Sold in a package of 5 fittings per unit

Compatibility

Designed for use with 3/8-inch OD flared steel tubing and components equipped with 3/8-19 BSPT threaded ports in hydraulic and fluid power systems.

Installation Notes

Installation should be performed by a qualified technician familiar with high-pressure hydraulic systems. De-pressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Ensure the mating tube end is properly flared to the correct 37-degree angle before assembly to prevent leaks. Follow applicable hydraulic system safety standards and the equipment manufacturer guidance for torque and assembly procedures.
