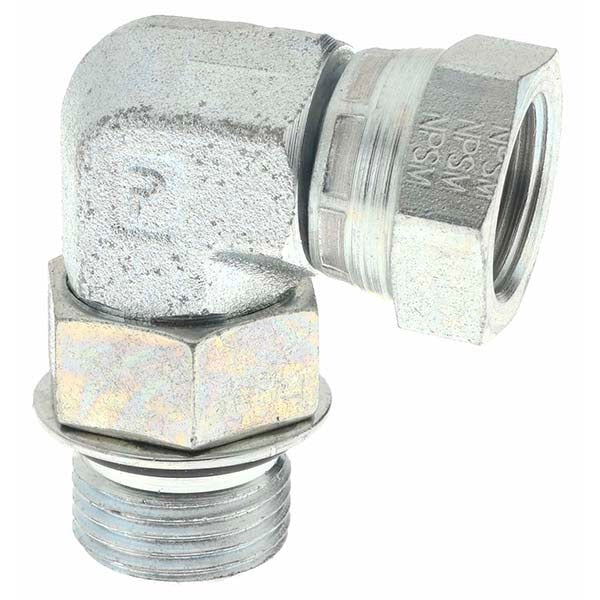

Parker 16264 Hydraulic Hose Swivel Elbow Fitting 6000 Psi

Product Description

The PARKER 16264 is a hydraulic hose swivel elbow fitting designed for high-pressure hydraulic systems. It connects flexible hose to fixed ports where inline connections are not practical, using a swivel design that allows rotation during assembly without twisting the hose. Constructed from steel, this fitting carries a 6,000 psi pressure rating and uses a 3/4-16 SAE ORB (O-Ring Boss) thread for a leak-resistant seal. It is suited for mobile equipment, industrial machinery, and any hydraulic circuit requiring a reliable 90-degree hose-to-port transition at elevated pressures.

This fitting is used in hydraulic plumbing on construction equipment, agricultural machinery, industrial presses, and similar systems where hose routing requires an angled connection. It accommodates a 1/2 inch hose diameter and is sold in a package quantity of two, making it practical for multi-circuit installations or keeping a spare on hand. Installation is typically performed by hydraulic system technicians or fluid power specialists working on high-pressure circuits.

Key Features

• 6,000 psi pressure rating for demanding high-pressure hydraulic service
• SAE ORB thread (3/4-16) provides a reliable O-ring face seal to minimize leakage
• Swivel design allows hose positioning without inducing twist stress on the hose assembly
• Steel construction for durability in industrial and mobile equipment environments
• Fits 1/2 inch hose diameter (8 mm hose size designation)
• Sold as a package of two units per order

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic hose assemblies requiring a 1/2 inch hose connection with a 3/4-16 SAE ORB port thread at up to 6,000 psi working pressure.

Installation Notes

Hydraulic fittings of this type should be installed by qualified fluid power technicians. Always depressurize and bleed down the hydraulic system fully before removing or installing any fitting. Verify the O-ring is properly seated and undamaged before assembly, and torque the fitting to the system manufacturer's specification for 3/4-16 SAE ORB connections. Inspect for leaks after restoring system pressure.
