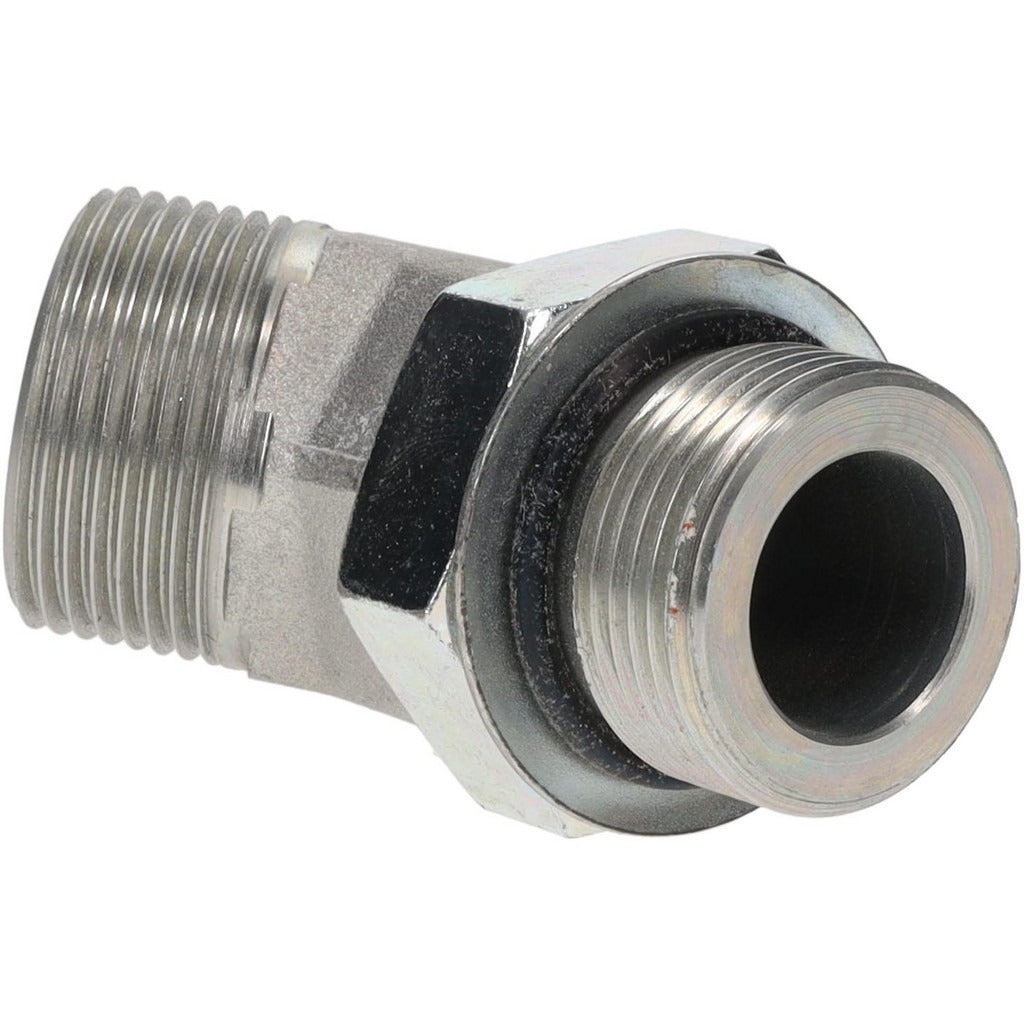

Parker 16 V5OLO-S 45 Degree Male Elbow Orfs Sae-orb Fitting

Product Description

The PARKER 16 V5OLO-S is a 45-degree male elbow tube fitting designed to connect a 1-inch OD compression tube to a male SAE O-Ring Boss port using an O-Ring Face Seal end. Constructed from zinc-plated steel, the fitting provides corrosion resistance in demanding hydraulic and fluid power applications. The male thread measures 1-5/16-12 UNF, and the fitting is rated for a maximum working pressure of 5500 psi. It is a single-piece hardware item sold individually. Licensed HVAC technicians, plumbers, and hydraulic system installers working with high-pressure fluid lines routinely specify this fitting type for dependable, leak-resistant connections.

This fitting is suited for hydraulic systems, industrial fluid power circuits, and high-pressure plumbing assemblies where a 45-degree directional change is required between a compression tube run and a threaded SAE-ORB port. It is appropriate for both mobile and stationary hydraulic equipment. The ORFS end connection relies on a flat face seal with an O-ring to eliminate leak paths, making it a preferred choice where vibration or pressure spikes are common installation conditions.

Key Features

• 45-degree male elbow configuration for directional routing in tight hydraulic plumbing layouts
• Zinc-plated steel construction for corrosion resistance in industrial environments
• ORFS x SAE-ORB end connections for leak-resistant, high-pressure sealing
• 1-5/16-12 UNF thread size compatible with standard SAE O-Ring Boss ports
• 1-inch tube OD compression end for secure tube engagement
• Rated to 5500 psi maximum working pressure

Compatibility

Designed as an OEM-style replacement or new-installation fitting for hydraulic and fluid power systems requiring a 1-5/16-12 UNF male SAE-ORB port connection with a 1-inch OD ORFS compression tube end.

Installation Notes

Installation should be performed by a qualified hydraulic technician or pipefitter. Depressurize and bleed the hydraulic circuit fully before removing or installing any fittings. Inspect the O-ring seating surface and replace the O-ring if any damage or deformation is present before reassembly. Torque to the fitting manufacturer specification and verify there are no leaks under system pressure before returning equipment to service.
