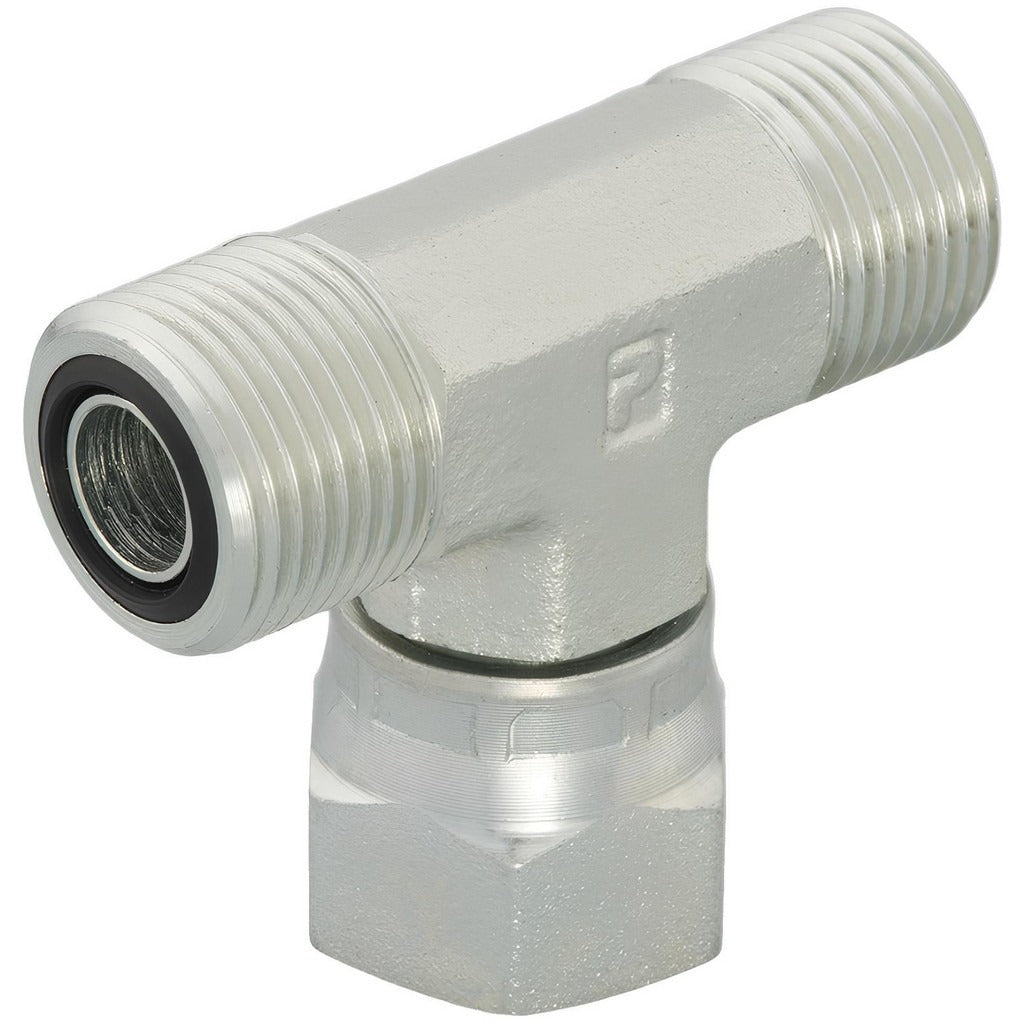

Parker 16 S6LO-S Swivel Branch Fitting 1 in Tube Od Orfs

Product Description

The PARKER 16 S6LO-S is a compression tube swivel branch fitting designed for high-pressure hydraulic and fluid power plumbing. It connects a 1-inch outside diameter tube to a system port using an O-Ring Face Seal (ORFS) end connection, providing a leak-resistant interface well suited to demanding fluid circuits. Rated to 6000 psi maximum working pressure, the fitting is constructed from steel for strength and durability. Licensed plumbers, hydraulic system technicians, and industrial maintenance trades install this type of fitting in applications where vibration or frequent reconnection would compromise a non-swivel joint.

This swivel branch fitting is appropriate for use in industrial hydraulic systems, mobile equipment fluid circuits, and heavy-duty plumbing assemblies where a 1-inch tube OD and ORFS port interface are specified. The swivel feature allows the tube end to rotate during installation, reducing stress on the line and simplifying routing in tight or congested manifold areas. It is sold individually and is suited for both new installations and service replacement work on steel-plumbed hydraulic circuits.

Key Features

• 1-inch tube outside diameter compression connection
• O-Ring Face Seal (ORFS) end connection for leak-resistant sealing
• 6000 psi maximum working pressure rating
• Steel construction for high-strength, high-pressure service
• Swivel branch design reduces installation torque and tube stress

Compatibility

Designed as an OEM-style replacement or new-install fitting for steel hydraulic tube assemblies using a 1-inch tube OD and ORFS port connections rated to 6000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician or licensed pipefitter. Depressurize and isolate the hydraulic circuit completely before removing or installing any fitting. Inspect the O-ring and sealing face for damage before assembly, and ensure the ORFS face is clean and free of debris. Follow the system manufacturer and applicable fluid power standards for assembly torque and line routing practices.
