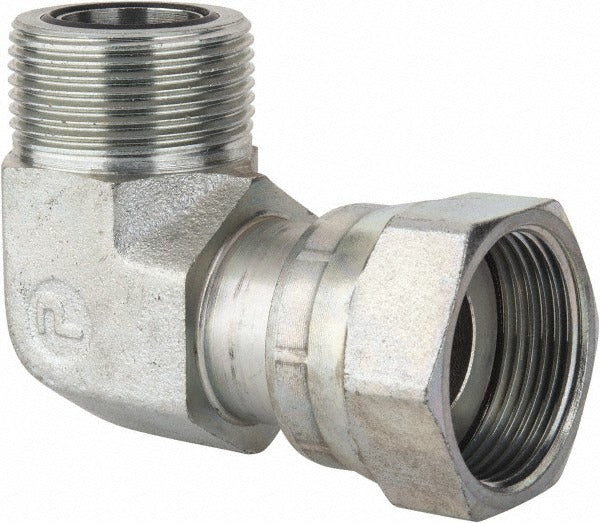

Parker 16 C6LO-S Swivel Elbow 1 Inch Od Orfs 6000 Psi

Product Description

The PARKER 16 C6LO-S is a compression tube swivel elbow fitting designed for high-pressure hydraulic and fluid power applications. It features an O-Ring Face Seal (ORFS) end connection, which provides a leak-free seal in demanding service environments. Constructed from steel, this fitting handles a maximum working pressure of 6000 psi. The swivel elbow design allows the tube end to rotate freely during assembly, reducing the need to torque the tube line itself and simplifying installation in tight or fixed-line configurations. Licensed trades and hydraulic system technicians install this fitting in compressed fluid and hydraulic circuits requiring reliable, vibration-resistant connections.

This fitting is suited for use in industrial, mobile equipment, and heavy-duty hydraulic systems where ORFS connections are specified. Its 1 inch tube outside diameter and UNF thread standard make it compatible with standard hydraulic tube assemblies. Common installation scenarios include connecting rigid tube lines to pumps, valves, actuators, and manifolds where directional changes in plumbing are required. The swivel feature is particularly useful when routing lines in congested equipment bays or when connecting to fixed ports where line rotation is not possible.

Key Features

• ORFS (O-Ring Face Seal) end connections provide positive, leak-free sealing under high pressure
• Swivel elbow design allows free tube rotation during assembly for simplified installation
• Rated to 6000 psi maximum working pressure for demanding hydraulic service
• Steel construction for strength and durability in industrial environments
• UNF thread standard for compatibility with standard hydraulic fittings and ports
• 1 inch tube outside diameter suits common hydraulic tube sizing

Compatibility

Designed as an OEM-style replacement or direct-install compression tube swivel elbow for hydraulic and fluid power systems specifying 1 inch OD tube with ORFS end connections and UNF threads rated to 6000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic technician or pipefitter familiar with high-pressure fluid systems. Depressurize and isolate the hydraulic circuit fully before removing or installing any fittings. Verify that the O-ring is properly seated and undamaged before torquing the connection; a missing or pinched O-ring will cause immediate leakage under pressure. Follow the equipment manufacturer and applicable industry standards for assembly procedures when working on high-pressure hydraulic lines.
