Parker 16 C5OLO-S Male Elbow 1 in Tube Od Orfs Sae-orb

Product Description

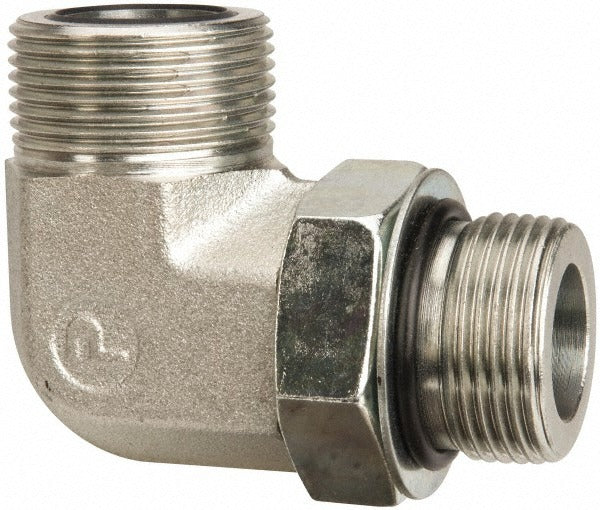

The PARKER 16 C5OLO-S is a compression tube male elbow fitting designed for high-pressure hydraulic and fluid conveyance systems. It connects a 1-inch outside diameter tube to a male SAE O-Ring Boss (ORB) port using an O-Ring Face Seal (ORFS) end, with a 1-5/16-12 UNF thread. Constructed from zinc-plated steel, it delivers corrosion resistance in demanding environments. Rated to 5,500 psi maximum working pressure, this fitting is suited for hydraulic lines, mobile equipment, and industrial fluid systems where leak-free connections are critical. Licensed hydraulic and fluid power technicians are the primary installers.

This fitting is appropriate for both mobile and stationary hydraulic applications where a 90-degree directional change is required in the plumbing circuit. The ORFS end provides a metal-to-metal seating surface backed by an O-ring, minimizing the risk of leakage under pressure cycles. The SAE-ORB male end threads directly into a standard SAE boss port on pumps, valves, cylinders, and manifolds. It is commonly used in agricultural equipment, construction machinery, and industrial hydraulic systems requiring reliable high-pressure tube routing.

Key Features

• Maximum working pressure of 5,500 psi for high-demand hydraulic service
• ORFS x SAE-ORB end connections provide a leak-resistant, dual-seal interface
• 1-5/16-12 UNF thread size for compatibility with standard SAE boss ports
• 1-inch tube outside diameter compression end for secure tube attachment
• Zinc-plated steel construction for corrosion resistance in harsh environments
• 90-degree male elbow geometry enables compact routing in confined spaces

Compatibility

Designed as an OEM-style replacement or new-installation fitting for hydraulic systems using 1-inch OD tubing terminated to SAE O-Ring Boss ports with ORFS face seal connections.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist familiar with SAE fitting standards. Depressurize and fully isolate the hydraulic circuit before disassembly or fitting installation. Inspect the O-ring seating surface for nicks or contamination before assembly, and replace the O-ring if any damage is present. Follow SAE J1926 and J1453 guidelines for thread engagement and seating torque appropriate to this fitting class.
