Parker 16-8 Trlon-s Tube End Reducer Orfs Steel 6000 Psi

Product Description

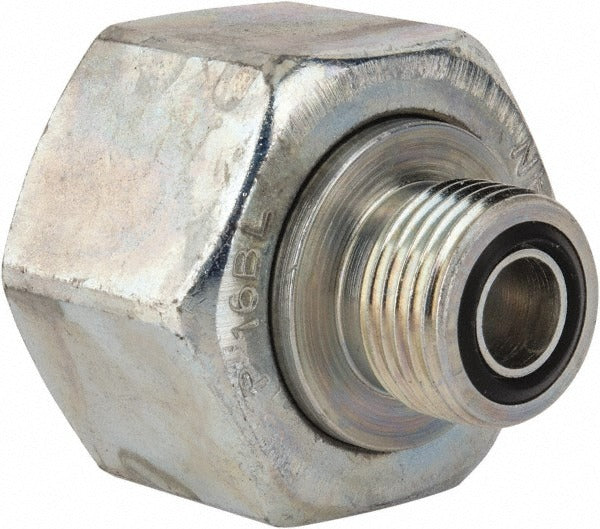

The PARKER 16-8 TRLON-S is a compression-style tube end reducer with an O-Ring Face Seal (ORFS) end connection, manufactured from steel. It reduces tubing from a 1-inch outside diameter down to a 0.5-inch outside diameter, providing a leak-resistant transition in high-pressure hydraulic and fluid-handling lines. Rated to a maximum working pressure of 6000 psi, this fitting is built for demanding service environments where a reliable, metal-to-metal-backed o-ring seal is required. It weighs 0.23 pounds. Licensed plumbers, pipefitters, and hydraulic system technicians are the primary installers for this type of fitting.

This tube end reducer is suited for hydraulic systems, pneumatic lines, and fluid distribution assemblies where tubing sizes must transition from 1 inch to 0.5 inch outside diameter. ORFS connections are commonly specified in mobile equipment, industrial machinery, and commercial fluid-power circuits where vibration resistance and zero-leak performance are priorities. The UNF thread standard is consistent with North American hydraulic component specifications, making this fitting straightforward to integrate into existing assemblies.

Key Features

• Reduces tube outside diameter from 1 inch to 0.5 inch in a single compression fitting
• O-Ring Face Seal (ORFS) end connection for leak-resistant performance at high pressure
• Maximum working pressure of 6000 psi
• Steel construction for durability in industrial and hydraulic service
• UNF thread standard for compatibility with standard North American hydraulic hardware
• Compact and lightweight at 0.23 pounds

Compatibility

Designed as an OEM-style compression tube end reducer for hydraulic and fluid-power systems using 1-inch to 0.5-inch outside diameter tubing with O-Ring Face Seal end connections and UNF threading.

Installation Notes

Installation should be performed by a qualified pipefitter, plumber, or hydraulic system technician. Depressurize and isolate the fluid circuit completely before removing or installing any fittings. Inspect the o-ring sealing surface for nicks or contamination before assembly, and ensure the o-ring is properly seated. Torque fittings according to the system designer or line-card specifications for the applicable tube size and pressure rating.
