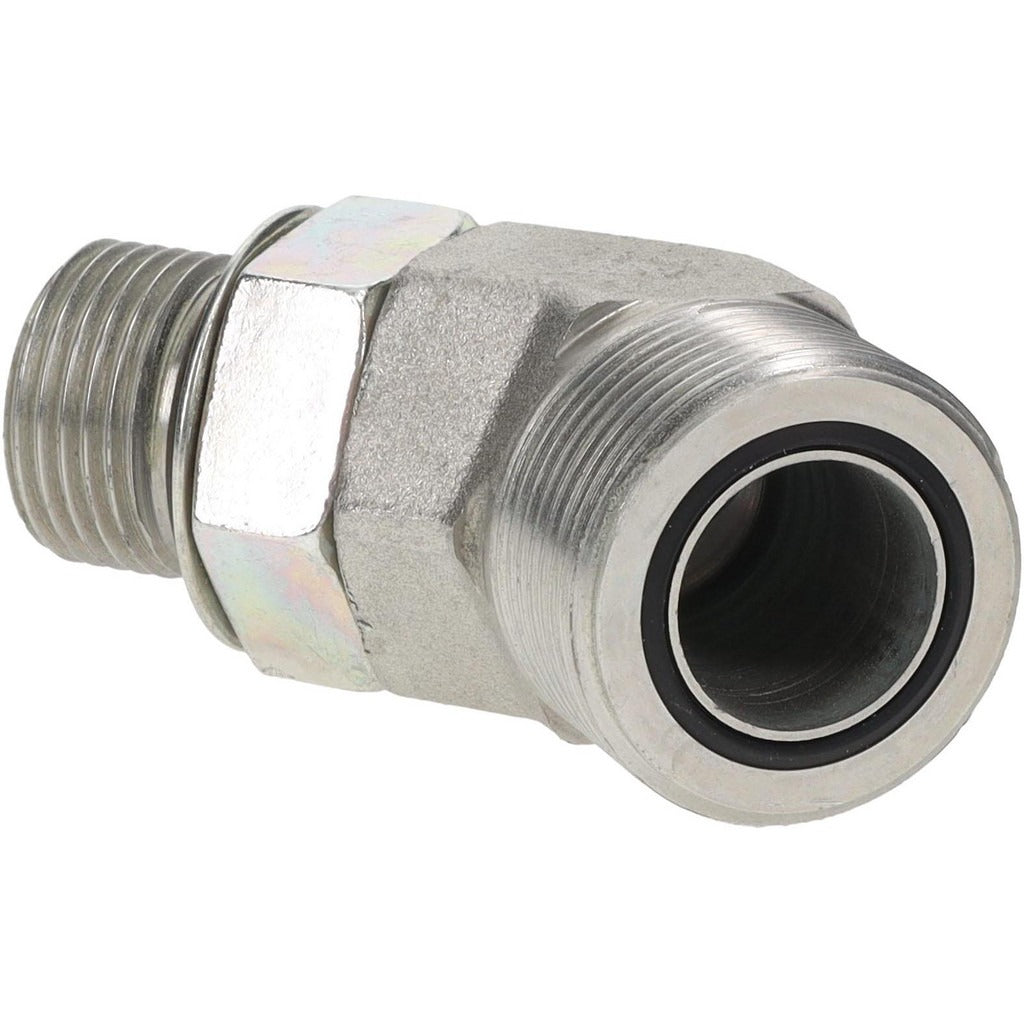

Parker 16-12 V5OLO-S 45 Deg Male Elbow Orfs Sae-orb Fitting

Product Description

The PARKER 16-12 V5OLO-S is a 45-degree male elbow compression tube fitting designed for high-pressure hydraulic and fluid power systems. It connects a 1-inch OD compression tube to a male SAE O-Ring Boss (SAE-ORB) port using an O-Ring Face Seal (ORFS) interface on the tube end. The fitting is machined from zinc-plated steel for corrosion resistance and is rated to a maximum working pressure of 6000 psi. The male thread measures 1-1/16-12 per UNF standards. Licensed plumbers, hydraulic technicians, and fluid power specialists install this type of fitting in mobile equipment, industrial machinery, and high-pressure plumbing assemblies.

This fitting suits applications where a 45-degree directional change is required between a compression tube line and an SAE-ORB threaded port. Typical install scenarios include hydraulic power units, mobile hydraulic circuits on construction and agricultural equipment, and industrial fluid systems requiring leak-free ORFS connections at elevated pressures. The zinc-plated steel construction makes it appropriate for both indoor and moderately exposed environments where steel fittings are the specified material. It is sold individually and is compatible with 1-inch OD tubing on the compression end.

Key Features

• 45-degree male elbow geometry routes tubing at an angle to reduce hose stress and save space in tight assemblies
• ORFS x SAE-ORB end connections provide a dual-seal interface that minimizes leakage risk at high pressure
• Rated to 6000 psi maximum working pressure for demanding hydraulic service
• 1-1/16-12 UNF male thread conforms to SAE-ORB standards for consistent port fitment
• Zinc-plated steel construction offers corrosion resistance in typical industrial and mobile equipment environments
• Accepts 1-inch OD compression tubing on the tube end for secure, bite-style mechanical connection

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic systems requiring a 1-inch OD compression tube connection to a 1-1/16-12 UNF SAE-ORB port with ORFS sealing.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist familiar with ORFS and SAE-ORB assembly procedures. Depressurize and isolate the hydraulic circuit fully before removing or installing any fittings. Inspect the O-ring and sealing surfaces for damage before assembly, and apply a compatible hydraulic fluid or O-ring lubricant to the O-ring prior to installation. Follow SAE J1453 and applicable system OEM torque and assembly guidelines for ORFS fittings.
