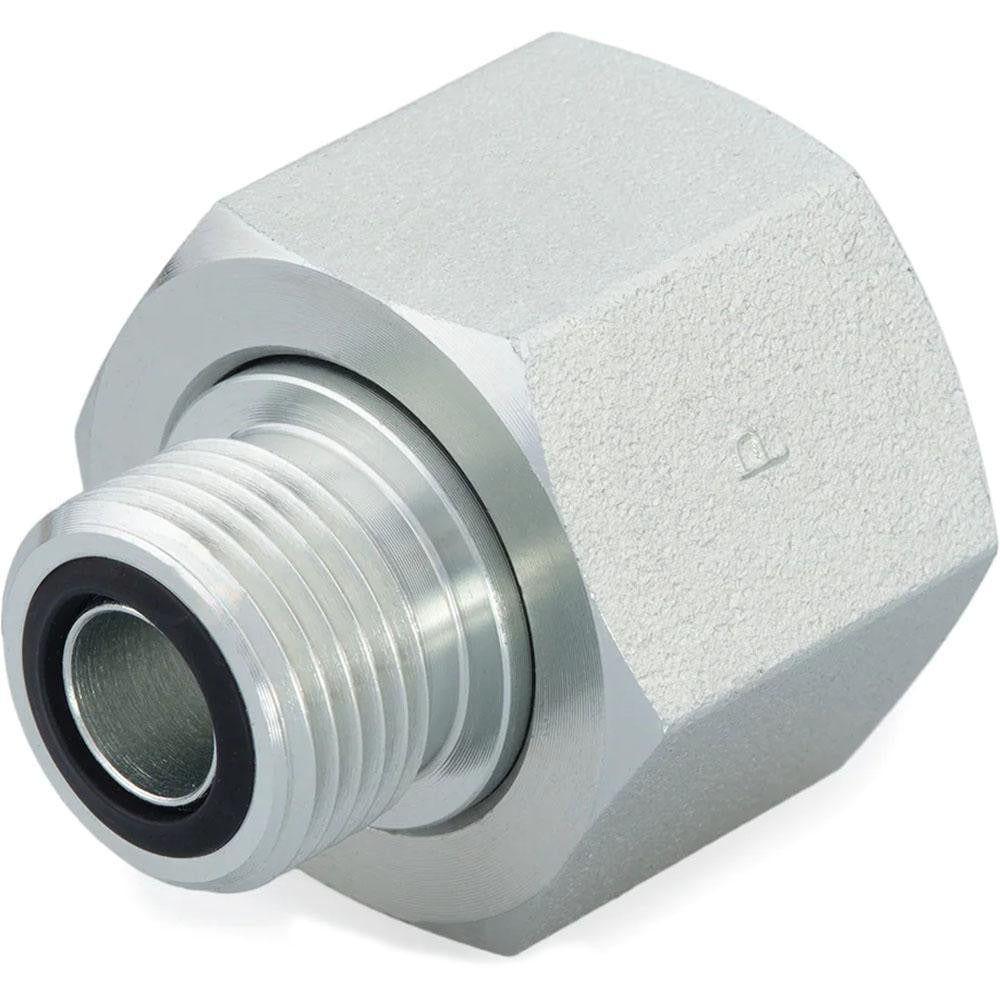

Parker 16-12 Trlon-s Tube End Reducer Orfs 1x3/4 Steel

Product Description

The PARKER 16-12 TRLON-S is a compression-style tube end reducer with O-Ring Face Seal (ORFS) end connections, manufactured from steel. It transitions tube outside diameter from 1 inch down to 3/4 inch and is rated for a maximum working pressure of 6000 psi. This fitting is used in high-pressure hydraulic and fluid system lines where a reliable, leak-resistant connection between two different tube sizes is required. Installation is typically performed by hydraulic system technicians, HVAC mechanical contractors, or plumbing professionals working on high-pressure tubing assemblies.

This reducer is suited for hydraulic lines, fluid power systems, and industrial plumbing applications that require step-down tube connections with ORFS sealing technology. ORFS fittings are widely specified in mobile hydraulics and industrial fluid systems because the face seal design minimizes the risk of leakage compared to tapered thread connections. The steel construction makes this fitting appropriate for systems operating under elevated pressure and temperature conditions.

Key Features

• Reduces tube outside diameter from 1 inch to 3/4 inch in a single fitting
• O-Ring Face Seal (ORFS) end connections per UNF thread standard for leak-resistant sealing
• Maximum working pressure rated at 6000 psi
• Steel construction for high-pressure and durable service
• Compression tube end reducer design for secure tubing connections

Compatibility

Designed as an OEM-style replacement or service fitting for high-pressure hydraulic and fluid power tubing systems using O-Ring Face Seal connections with UNF threading and 1 inch by 3/4 inch tube outside diameter configurations.

Installation Notes

This fitting should be installed by a qualified hydraulic or mechanical technician. Depressurize and fully isolate the hydraulic or fluid system before removing or installing any fittings. Inspect the O-ring sealing face for damage or contamination prior to assembly, and ensure the ORFS O-ring is properly seated to achieve a leak-free connection. Follow applicable system pressure ratings and relevant fluid system codes when specifying or replacing fittings in pressurized lines.
