Parker 16-12 C5OLO-S Male Elbow Orfs Sae-orb 1 in Tube Od

Product Description

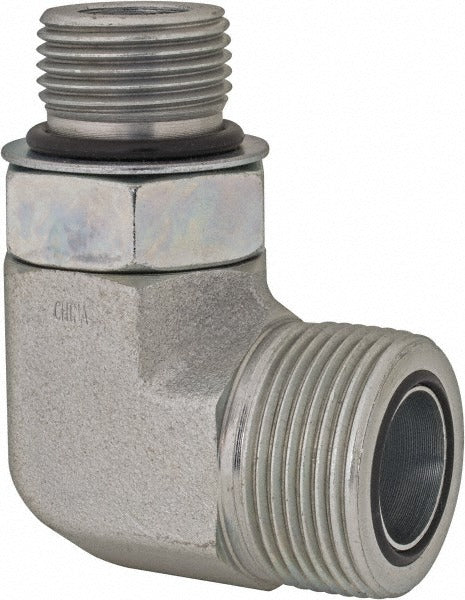

The PARKER 16-12 C5OLO-S is a compression tube male elbow fitting designed to connect hydraulic or fluid lines at a 90-degree angle. It features an O-Ring Face Seal (ORFS) tube end on one side and an SAE O-Ring Boss (SAE-ORB) male thread on the other. The body is constructed from zinc-plated steel for corrosion resistance in demanding service environments. It accepts a 1-inch tube outside diameter and uses a 1-1/16-12 UNF thread. Maximum working pressure is rated at 6000 psi. This fitting is installed by licensed hydraulic, plumbing, or industrial service technicians working on high-pressure fluid systems.

This elbow fitting is suited for use in hydraulic systems, mobile equipment, industrial machinery, and fluid power circuits where a 90-degree directional change is required at a port connection. The ORFS end provides a leak-free metal-to-metal face seal with a captive O-ring, while the SAE-ORB threaded end connects directly to a boss port on pumps, valves, manifolds, or cylinders. Typical installations are found in construction equipment, agricultural machinery, and stationary industrial hydraulic systems.

Key Features

• ORFS x SAE-ORB end connections for leak-free high-pressure hydraulic service
• Rated to 6000 psi maximum working pressure
• 1-inch tube outside diameter compression end
• 1-1/16-12 UNF male thread for direct boss port engagement
• Zinc-plated steel construction for corrosion resistance
• 90-degree elbow geometry for space-constrained routing

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic systems requiring a 1-inch OD tube ORFS connection to a 1-1/16-12 UNF SAE-ORB boss port.

Installation Notes

Installation should be performed by a qualified hydraulic or fluid power technician. Depressurize and drain the hydraulic system fully before removing or installing any fittings. Inspect the O-ring and sealing face for damage prior to assembly and replace the O-ring if worn or cut. Torque to the fitting manufacturer and system design specifications and verify for leaks at system operating pressure before returning equipment to service.
