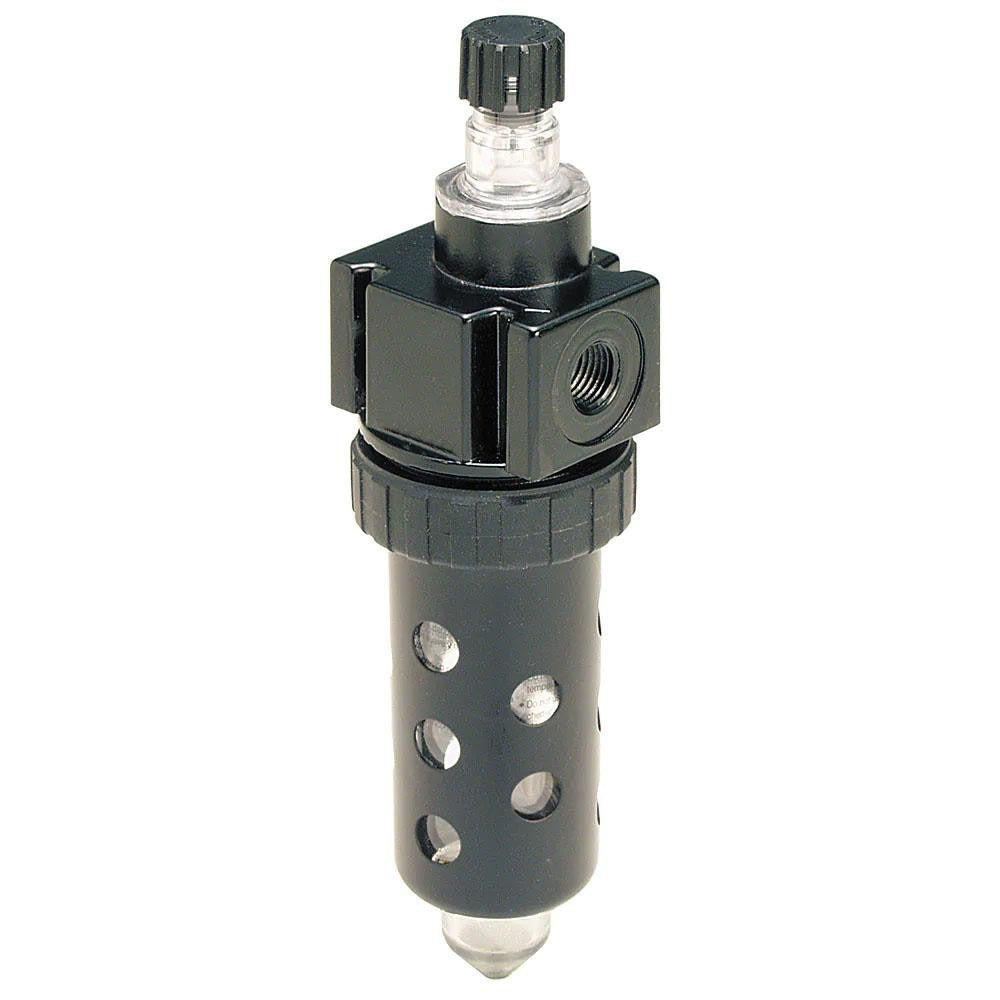

Parker 15L22NA Compressed Air Lubricator 40 Cfm 3/8 Npt

Product Description

The PARKER 15L22NA is a compact micro mist lubricator designed for compressed air systems. It meters oil into the airstream to protect downstream pneumatic tools, valves, and actuators from wear and corrosion. Built around a zinc body with a polycarbonate bowl, it handles flow rates up to 40 CFM through a 3/8 inch NPT port. The integrated sight glass lets technicians confirm oil feed without shutting down the line. This unit is part of Parker's Series 15L and is sized for tight panel and manifold installations where space is limited. Licensed pipefitters, pneumatic system technicians, and industrial maintenance professionals are the typical installers.

The 15L22NA fits inline compressed air distribution systems in light industrial, manufacturing, and process automation environments. It is suited for residential and commercial pneumatic circuits where tools or actuators require continuous lubrication. The modular connection feature allows it to be paired with compatible filters and regulators to build a full FRL (filter-regulator-lubricator) assembly. Minimum working temperature is 32 degrees F, making it appropriate for climate-controlled indoor installations. The 2 oz bowl capacity suits lower-duty cycles where frequent reservoir refills are acceptable.

Key Features

• Micro mist lubrication delivers fine oil particles throughout the downstream air circuit
• Zinc body provides corrosion resistance in typical shop-air environments
• Polycarbonate bowl with metal bowl guard for visibility and impact protection
• Integrated sight glass allows visual confirmation of oil feed while system is running
• Modular connection supports inline FRL assembly with compatible Parker Series 15L components
• Compact footprint at 2 inches wide and 7.38 inches high suits space-constrained installations

Compatibility

Designed as an OEM-style inline lubricator for compressed air systems using 3/8 inch NPT connections. Compatible with modular Parker Series 15L filter and regulator units for FRL assembly configurations.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or licensed pipefitter. Depressurize and bleed the compressed air line completely before installing or servicing this lubricator. Install with airflow direction matching the arrow marked on the body, and position the unit upright so the bowl is oriented downward for proper oil collection. Use thread sealant rated for compressed air service on all NPT connections and verify for leaks before returning the system to full operating pressure.
