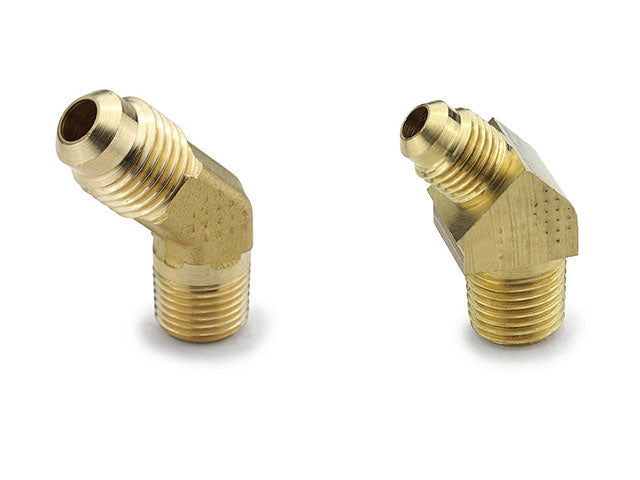

Parker 159F-4-2 45 Degree Elbow 159F-259F

Product Description

The Parker 45 degree elbow, MPN 159F-4-2, is designed for applications that require a reliable connection at an angle. This fitting complies with the SAE J512 and J513 standards, ensuring performance and safety in various fluids. It is suitable for use with copper, brass, aluminum, or steel tubing that is flared to forty-five degrees.

• Meets SAE J512 and J513 standards
• Constructed from durable brass for long-lasting use
• Rated for pressures up to 1400 PSI

Product Highlights

The 45 degree flare elbow is ideal for plumbing and HVAC applications, allowing for efficient fluid transfer in tight spaces.

Product Information

Standard Information

• Brand: Parker
• Manufacturer: Parker

Technical Specifications

• Outer Diameter 1: 1/4 Inch
• Thread 1: 7/16-20 UN/UNF
• Thread 2: 1/8 NPT
• Material: Brass
• Series: 45 Degree Flare
• Configuration Type: Flare to Male
• Configuration Sub-Type: Male Elbow 45 Degree
• Operating Temperature: -65°F to +250°F
• Pressure Rating: 1400 PSI
• SAE Compliance: J512 and J513
• Parker Division: Fluid Systems Connector (Brass Products)
• Parker Group: Fluid Connector
