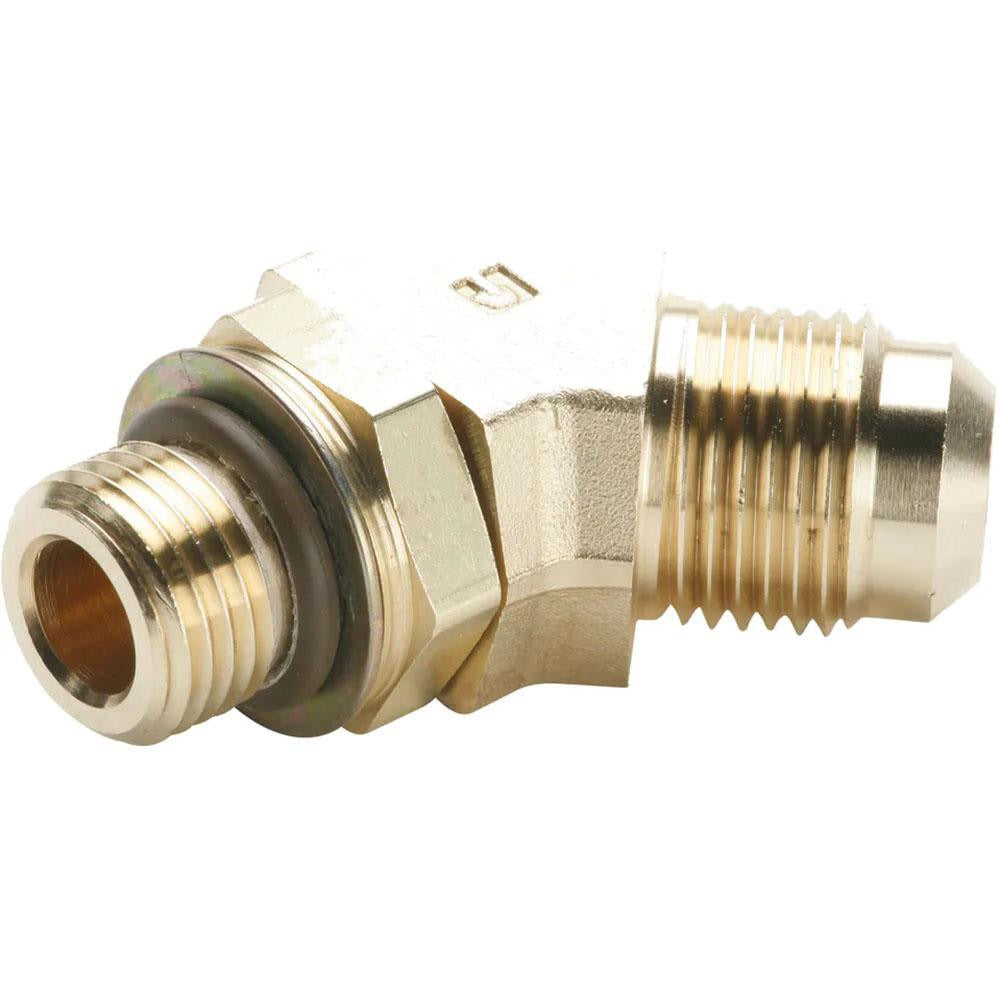

Parker 159F-10-MI27 Brass Iso Port Adapter 45 Elbow

Product Description

The PARKER 159F-10-MI27 is a brass ISO port adapter designed to connect a flared tube end to a metric threaded port using a 45-degree elbow geometry. The adapter features an M27x2 metric thread on one end and a flared connection on the other, making it suitable for hydraulic and fluid power systems where ISO 6149-3 and SAE 2244-3 port standards are required. Rated at 650 psi working pressure, this fitting is built from brass for corrosion resistance in a range of fluid media. It is installed by licensed plumbers, hydraulic system technicians, and fluid power professionals in industrial and mobile equipment applications.

This adapter is used in hydraulic lines, fluid power circuits, and pneumatic systems where a flare-to-metric port transition is needed at a 45-degree angle. It is well suited for both OEM assembly and field service work where ISO-standard metric ports must be interfaced with flared tubing. The Viton seal material supports use across a broad temperature range, from -65 degrees F and above, and accommodates vacuum service down to -53 psi. Applications include mobile hydraulics, industrial machinery, and related fluid handling systems.

Key Features

• 45-degree elbow geometry for routing flared lines into tight or angled metric port locations
• M27x2 metric thread meets ISO 6149-3 and SAE 2244-3 standards
• Flared end connection provides a positive, leak-resistant seal
• Brass construction offers corrosion resistance across a wide range of fluids
• Viton seal material supports low-temperature service to -65 degrees F
• Rated for 650 psi working pressure and vacuum service to -53 psi

Compatibility

Designed as an OEM-style and field-replacement fitting for hydraulic and fluid power systems using ISO 6149-3 or SAE 2244-3 metric port standards with flared tube connections.

Installation Notes

Installation should be performed by a qualified hydraulic technician or licensed plumber. Depressurize and isolate the hydraulic or fluid system fully before removing any fittings. Hand-tighten the adapter to seat the thread, then follow standard flare fitting and ISO port torque practice per your system documentation. Inspect the Viton seal and flare seat for damage before assembly to ensure a leak-free connection.
