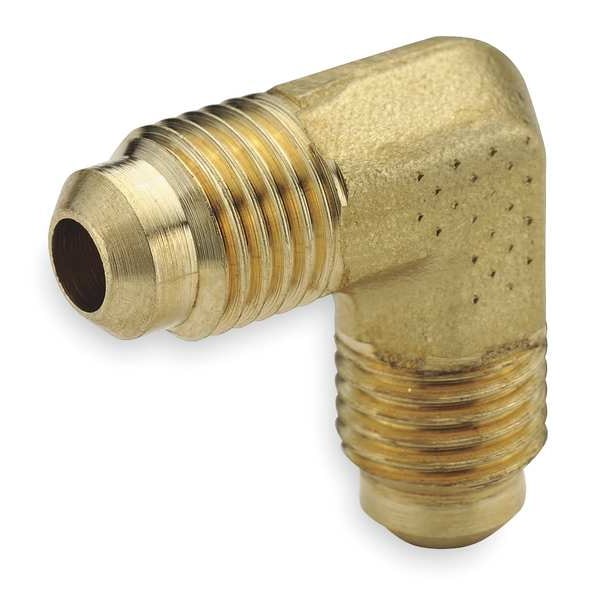

Parker 155F-8 Union Elbow 155F

Product Description

The Parker 155F-8 is a brass union elbow designed for standard connections in various piping systems. This fitting complies with SAE J512 and J513 specifications and is suitable for use with copper, brass, aluminum, and steel tubing that can be flared to forty-five degrees.

• Compatible with multiple types of tubing
• Rated for high pressure up to 750 PSI
• Works within a wide temperature range of -65 degrees Fahrenheit to +250 degrees Fahrenheit

Product Highlights

The Parker 155F-8 provides reliable connections in fluid systems, ensuring durability and strength in various applications.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 155F-8

Technical Specifications

• Outer Diameter 1: 1/2 Inch
• Outer Diameter 2: 1/2 Inch
• Thread 1: 3/4-16 UN/UNF
• Thread 2: 3/4-16 UN/UNF
• Material: Brass
• Series: 45 Degree Flare
• Configuration Type: Flare to Flare
• Configuration Sub-Type: Union Elbow 90 Degree
• Pressure Rating: 750 PSI
• Operating Temperature: -65 Degrees Fahrenheit to +250 Degrees Fahrenheit
• Parker Division: Fluid Systems Connector (Brass Products)
• SAE Compliance: J512 and J513
