Parker 155F-4 Union Elbow 155F Flare 45 Degree Replacement MPN

Product Description

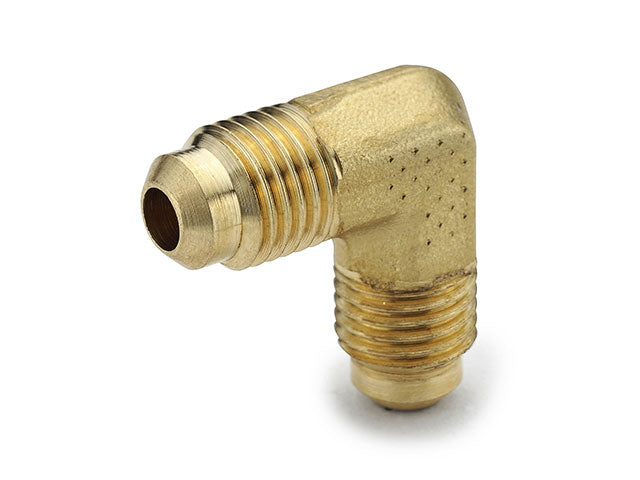

Parker 155F-4 is a union elbow designed for a 45-degree flare. This fitting is compliant with SAE J512 and J513 standards. It is suitable for use with copper, brass, aluminum, or steel tubing that can be flared at a 45-degree angle.

• Compatible with various tube materials.
• Rated for a maximum pressure of 1400 PSI.
• Operating temperature range from minus sixty-five degrees Fahrenheit to plus two hundred fifty degrees Fahrenheit.

Product Highlights

The Parker 155F-4 enhances connectivity in fluid systems while ensuring reliable performance.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 155F-4

Technical Specifications

• Outer Diameter 1: 1/4 Inch
• Outer Diameter 2: 1/4 Inch
• Thread 1: 7/16-20 UN/UNF
• Thread 2: 7/16-20 UN/UNF
• Material: Brass
• Series: 45 Degree Flare
• Configuration Type: Flare to Flare
• Configuration Sub-Type: Union Elbow 90 Degree
• Pressure Rating: 1400 PSI
• Operating Temperature: -65°F to +250°F
• Parker Division: Fluid Systems Connector (Brass Products)
• SAE Compliance: J512 and J513
