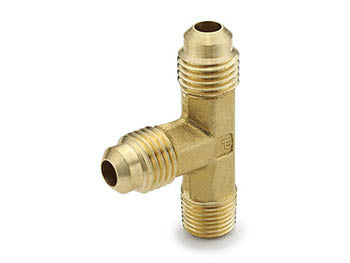

Parker 151F-6-4 Male Run Tee 45 Degree Flare 3/8 Inch Replacement MPN

Product Description

The Parker 151F-6-4 Male Run Tee is a brass fitting designed for reliable connections. It meets SAE J512 and J513 standards, making it suitable for various applications. The fitting allows connections to copper, brass, aluminum, or steel tubing that can be flared to 45 degrees.

• For use with multiple tubing materials
• Designed for a maximum pressure rating of 1000 PSI
• Operates effectively in temperatures ranging from -65 degrees Fahrenheit to +250 degrees Fahrenheit

Product Highlights

Reliable male run tee fitting with a 45° flare configuration, ensuring a secure and leak-free connection.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 151F-6-4

Technical Specifications

• Material: Brass
• Outer Diameter 1: 3/8 Inch
• Outer Diameter 2: 3/8 Inch
• Thread 1: 5/8-18 UN/UNF
• Thread 2: 5/8-18 UN/UNF
• Thread 3: 1/4 NPT
• Configuration Type: Flare to Male
• Configuration Sub-Type: Male Run Tee
• Pressure Rating: 1000 PSI
• Operating Temperature: -65°F to +250°F
• SAE Compliance: J512 and J513
• Parker Division: Fluid Systems Connector (Brass Products)
• Parker Group: Fluid Connector
