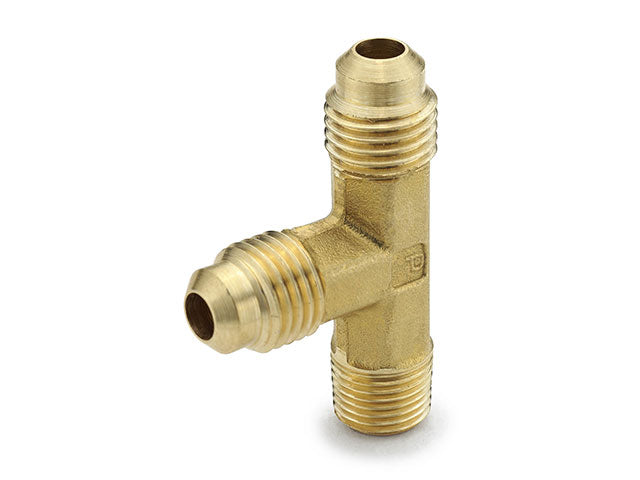

Parker 151F-4-2 Male Run Tee 45 Degree Flare 1/4 Inch Replacement MPN

Product Description

Parker 151F-4-2 is a male run tee designed for use in fluid systems. This fitting meets the standards set by SAE J512 and J513 and is suitable for use with various types of tubing including copper, brass, aluminum, and steel. It is compatible with flared connections and is a reliable choice for connecting multiple lines in a plumbing or HVAC application.

• Meets SAE J512 and J513 standards.
• Constructed from durable brass material.
• Operating temperature range from -65 degrees Fahrenheit to +250 degrees Fahrenheit.

Product Highlights

This male run tee provides a secure connection for branching tubes in fluid systems. Its forged body ensures strength and longevity in demanding applications.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 151F-4-2

Technical Specifications

• Material: Brass
• Configuration Type: Flare to Male
• Configuration Sub-Type: Male Run Tee
• Outer Diameter 1: 1/4 Inch
• Outer Diameter 2: 1/4 Inch
• Thread 1: 7/16-20 UN/UNF
• Thread 2: 7/16-20 UN/UNF
• Thread 3: 1/8 NPT
• Pressure Rating: 1400 PSI
• Operating Temperature: -65 degrees Fahrenheit to +250 degrees Fahrenheit
• Body Shape: Forged
• Series: 45 Degree Flare
• SAE Compliance: J512 and J513
