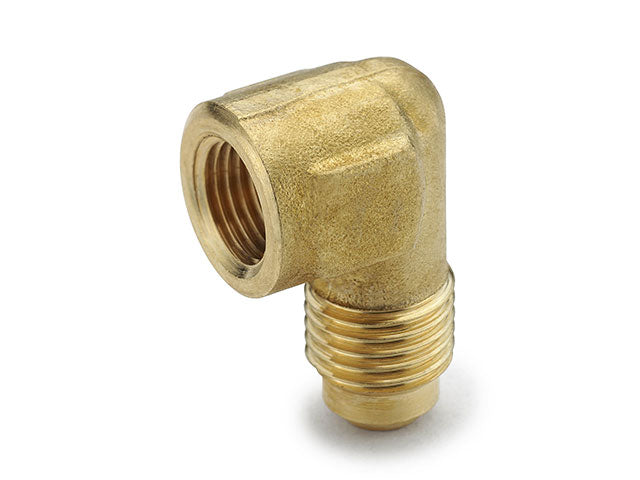

Parker 150F-4-2 Female Elbow 150F 45 Degree Flare - SAE 010203

Product Description

The Parker 150F-4-2 is a female elbow fitting designed for fluid connections. It is constructed to meet the specifications of SAE J512 and J513. This fitting is suitable for use with various types of tubing including copper, brass, aluminum, or steel that can be flared to a forty-five-degree angle.

• Meets SAE J512 and J513 standards
• Compatible with multiple materials for flexibility
• Pressure rated at 1400 PSI for robust applications

Product Highlights

The Parker 150F-4-2 enables reliable connections across different tubing types.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 150F-4-2

Technical Specifications

• Outer Diameter: 1/4 Inch
• Thread 1: 7/16-20 UN/UNF
• Thread 2: 1/8 NPT
• Material: Brass
• Series: 45 Flare
• Configuration Type: Flare to Female
• Configuration Sub-Type: Female Elbow 90 Degree
• Operating Temperature: -65°F to +250°F
• Pressure Rating: 1400 PSI
