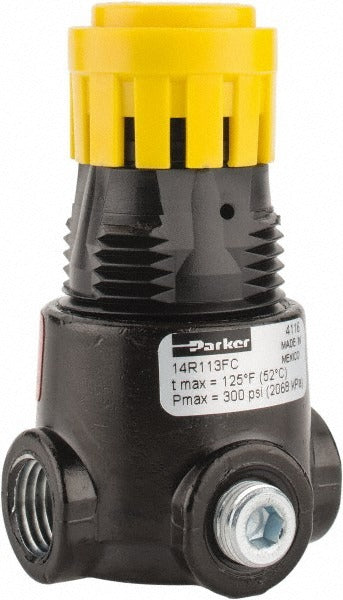

Parker 14R113FC Miniature Air Regulator 300 Psi 1/4 Npt

Product Description

The PARKER 14R113FC is a miniature compressed air regulator designed to maintain consistent downstream pressure in pneumatic systems. Built on the 14R series platform, it accepts supply pressures up to 300 psi and delivers a regulated output range of 2 to 125 psi. Maximum air flow is rated at 14 CFM, making it well-suited for compact, space-constrained installations. The zinc body keeps weight low at 0.4 pounds. A built-in relief function vents excess downstream pressure when the set point is exceeded. Licensed pneumatic technicians, pipefitters, and industrial maintenance mechanics are the primary installers.

This regulator is intended for compressed air service in light industrial, manufacturing, and automated equipment applications where a small-footprint pressure control device is required. The 1/4 inch NPT port connections allow direct inline installation in standard compressed air distribution lines. A 1/8 inch gauge port thread is provided for optional pressure gauge installation, though no gauge is included. The regulator is rated for continuous service at ambient temperatures starting at 32 degrees F and is appropriate for both bench-mounted and panel-mounted pneumatic circuits.

Key Features

• Miniature 14R series design for space-constrained pneumatic installations
• Maximum supply pressure of 300 psi with regulated output from 2 to 125 psi
• 14 CFM maximum air flow at rated conditions
• Integrated relief function vents excess downstream pressure automatically
• 1/8 inch gauge port for optional downstream pressure monitoring
• Zinc body construction at 0.4 pounds for lightweight inline use

Compatibility

Designed as an OEM-style replacement or service component for compressed air systems using 1/4 inch NPT inline regulators within the PARKER 14R series.

Installation Notes

Installation should be performed by a qualified pipefitter or pneumatic technician. Depressurize and lock out the compressed air supply before removing any existing regulator or fittings. Apply thread sealant appropriate for compressed air service to all NPT connections and verify joint integrity before repressurizing. Follow applicable OSHA compressed air safety requirements and facility pneumatic system codes during service.
