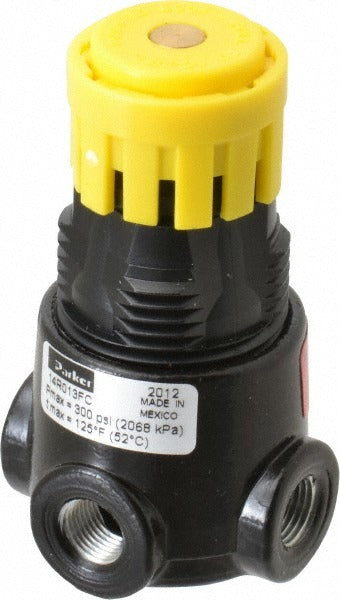

Parker 14R013FC Miniature Air Regulator 1/8 Npt 300 Psi

Product Description

The PARKER 14R013FC is a miniature compressed air regulator designed to reduce and maintain downstream air pressure in pneumatic systems and compressed air circuits. Built from zinc, this Series 14R unit handles supply pressures up to 300 psi and delivers a regulated output range of 2 to 125 psi. With a maximum air flow rating of 12.7 CFM through a 1/8 inch NPT port, it fits tight-space installations where a full-size regulator is not practical. A built-in relief function bleeds excess downstream pressure when the set point is lowered. No pressure gauge is included. Licensed HVAC technicians, pneumatic system integrators, and industrial maintenance professionals are the typical installers.

The 14R013FC is suited for residential and light commercial pneumatic control circuits, compressed air tool supply lines, and instrumentation applications that require stable, low-volume airflow regulation. The 1/8 inch NPT end connection is common in miniature pneumatic fittings and control system manifolds. Its compact footprint allows installation in panel-mounted or inline configurations where space is constrained. The fluid type is compressed air only. The unit weighs 0.5 pounds, making it easy to handle in overhead or confined installations.

Key Features

• Miniature Series 14R design for space-constrained pneumatic circuits
• 300 psi maximum supply pressure with 2 to 125 psi regulated output range
• 12.7 CFM maximum air flow through 1/8 inch NPT ports
• Integrated relief function releases excess downstream pressure automatically
• Zinc body construction for durability in compressed air service
• 1/8 inch gauge port thread size allows optional gauge addition if needed

Compatibility

Designed as an OEM-style replacement or new-installation miniature compressed air regulator for 1/8 inch NPT pneumatic systems handling compressed air service.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air system safety. Depressurize and lock out the supply line before connecting or removing the regulator. Apply thread sealant rated for pneumatic service to all NPT connections and verify for leaks after pressurization. Do not exceed the 300 psi maximum supply pressure rating.
