Parker 14N77-24-24 Sae Code 61 Flange 90 Elbow 1.5 in 5000 Psi

Product Description

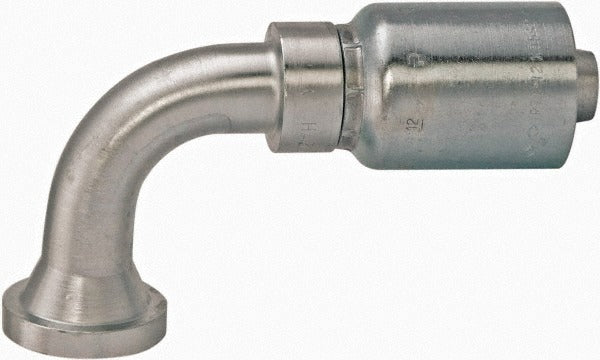

The PARKER 14N77-24-24 is a medium drop SAE Code 61 flange head 90-degree elbow fitting designed for high-pressure hydraulic hose assemblies. Built from steel, this Series 77 fitting accepts a 1.5-inch inside diameter hose and carries a 5,000 psi pressure rating. The threaded connection type and 90-degree elbow geometry make it well suited for routing hydraulic lines in tight or angled installations. Licensed HVAC techs, plumbers, and fluid-power mechanics working on industrial or mobile hydraulic systems will recognize this as a standard high-pressure flange-style termination fitting.

This fitting is intended for use in hydraulic systems that require a medium drop SAE Code 61 flange interface at a 90-degree offset. It is compatible with Parker 387 TC ST, 487 TC ST, 787 TC ST, and 797 TC ST hose series. Typical install scenarios include mobile equipment, industrial machinery, and high-pressure fluid transfer systems where hose routing demands a right-angle transition at the connection point. The 1-1/2 inch thread size and 24 mm hose size designation confirm fitment within the 1.5-inch ID range.

Key Features

• 5,000 psi pressure rating suitable for demanding hydraulic circuits
• SAE Code 61 flange head configuration for leak-resistant high-pressure connections
• 90-degree medium drop elbow geometry for compact, angled routing
• Steel construction for durability in hydraulic service environments
• Threaded connection type for secure assembly to compatible hose ends
• Meets ISO 12151-3-E90M-L standards

Compatibility

Designed for use with Parker 387 TC ST, 487 TC ST, 787 TC ST, and 797 TC ST hydraulic hoses in 1.5-inch inside diameter (24 mm) configurations.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid-power mechanic familiar with SAE Code 61 flange connections. Depressurize and fully isolate the hydraulic system before disassembling any fittings or hose ends. Use appropriate torque tooling rated for the connection size and ensure mating flange faces are clean and free of debris before assembly. Follow applicable ISO and SAE standards for hydraulic fitting assembly procedures.
