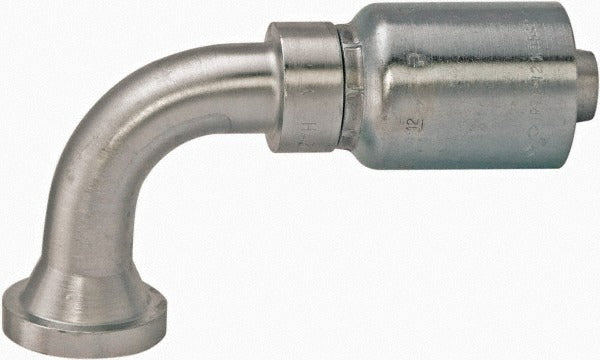

Parker 14N77-24-20 Sae Code 61 Flange 90 Elbow 1-1/2 in

Product Description

The PARKER 14N77-24-20 is a medium drop SAE Code 61 flange head 90-degree elbow fitting designed for high-pressure hydraulic hose assemblies. Manufactured from steel, this fitting is engineered for hydraulic systems operating at pressures up to 5,000 psi. It features a 1-1/4 inch hose diameter and a 1-1/2 inch thread size, conforming to Series 77 flange dimensions. The 90-degree elbow configuration reduces stress on hose routing in tight equipment envelopes. This fitting is installed by hydraulic system technicians and fluid power specialists in mobile and industrial hydraulic applications.

This fitting is suited for use in medium-pressure hydraulic circuits where a compact, angled connection is required at the hose termination point. The SAE Code 61 flange head design is common in agricultural, construction, and industrial mobile equipment where standardized flange fittings are specified. The medium drop body style provides additional clearance in confined mounting areas. System designers and field technicians rely on this configuration when routing hoses around structural members or other obstructions in hydraulic circuits.

Key Features

• SAE Code 61 flange head for standardized high-pressure hydraulic connections
• 90-degree elbow geometry eases hose routing in tight or congested equipment layouts
• 5,000 psi pressure rating suitable for demanding hydraulic circuits
• Steel construction for durability in industrial and mobile equipment environments
• 1-1/4 inch hose diameter with 1-1/2 inch thread size per Series 77 dimensions
• Sold as a single fitting with a minimum order quantity of one

Compatibility

Designed as an OEM-style hydraulic hose fitting for medium-pressure SAE Code 61 flange head applications requiring a 90-degree elbow termination in Series 77 configurations.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. De-energize and depressurize the hydraulic system completely before disconnecting or installing any fittings. Inspect sealing surfaces for nicks or contamination before assembly. Torque flange bolts evenly in a cross pattern per the equipment manufacturer's specifications for SAE Code 61 connections.
