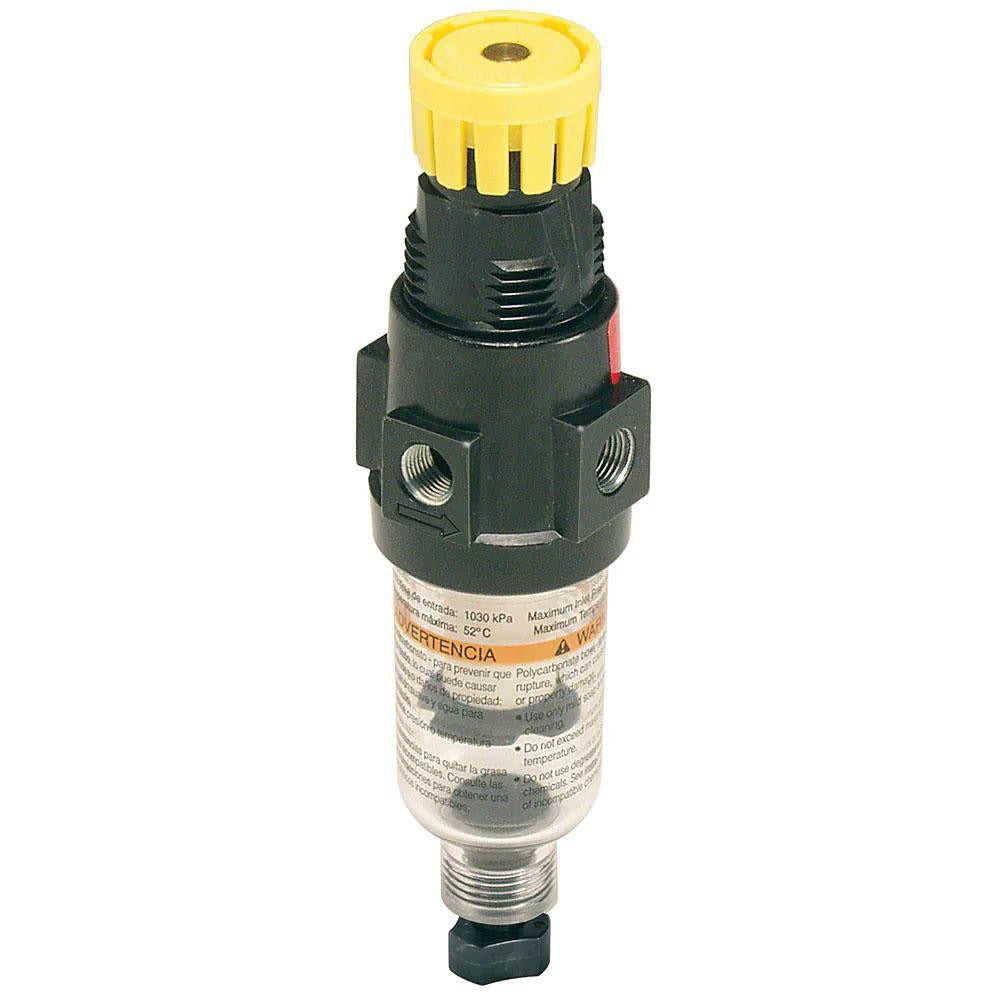

Parker 14E11B13FC Frl Filter Regulator 1/4 Npt 18 Scfm

Product Description

The PARKER 14E11B13FC is a miniature FRL combination unit configured as a single-piece filter/regulator for compressed air systems. It filters particulates down to 5 microns while regulating downstream pressure, consolidating two functions into one compact body. With a maximum supply pressure of 150 psi and a flow capacity of 18 SCFM, this unit suits light-duty pneumatic circuits in industrial and commercial settings. The zinc body and polycarbonate bowl keep weight low at 0.6 pounds. A manual drain allows accumulated moisture to be purged during routine maintenance. Pneumatic system technicians and industrial mechanics are the typical installers for this type of component.

The 14E11B13FC fits inline on compressed air supply lines where space is limited and a combined filter/regulator is preferred over separate components. The 1/4 NPT end connections are standard for light pneumatic tooling, automation equipment, and control panel air supplies. With an operating temperature range of 32 to 125 degrees F, it is suited for climate-controlled indoor industrial environments. The Series 14E miniature form factor is appropriate for panel-mount or manifold-style installations where a full-size FRL would not fit. No pressure gauge or bowl guard is included with this unit.

Key Features

• Single-piece filter/regulator design consolidates filtration and pressure regulation into one compact unit
• 5-micron filtration removes particulates from compressed air supply lines
• 150 psi maximum supply pressure with 18 SCFM flow capacity
• 1/4 NPT ports with 1/8 gauge port for optional pressure gauge addition
• Manual drain for periodic removal of accumulated liquid from polycarbonate bowl
• Miniature zinc body measures 1.62 inches wide and 6.21 inches tall, saving panel space

Compatibility

Designed as an OEM-style inline filter/regulator for compressed air systems using 1/4 NPT connections and requiring a miniature-footprint FRL combination unit rated to 150 psi.

Installation Notes

Installation should be performed by a qualified pneumatic or industrial maintenance technician. Depressurize and lock out the compressed air supply before removing or installing any FRL component. Ensure NPT threads are sealed with appropriate thread sealant tape applied per standard practice, and do not overtighten fittings into the zinc body ports. Confirm the downstream pressure setting after installation with a calibrated gauge before returning the system to service.
